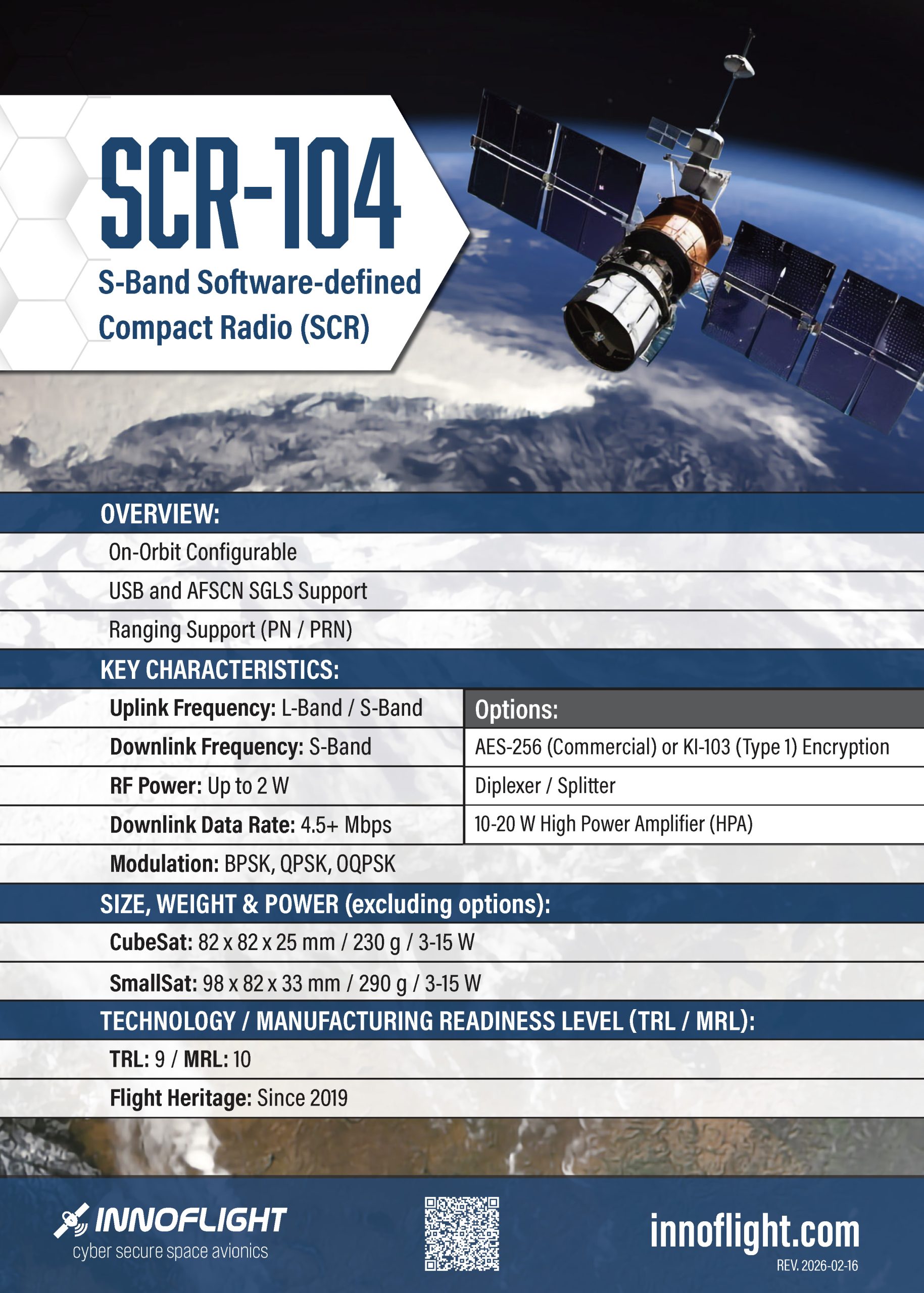

Overview:

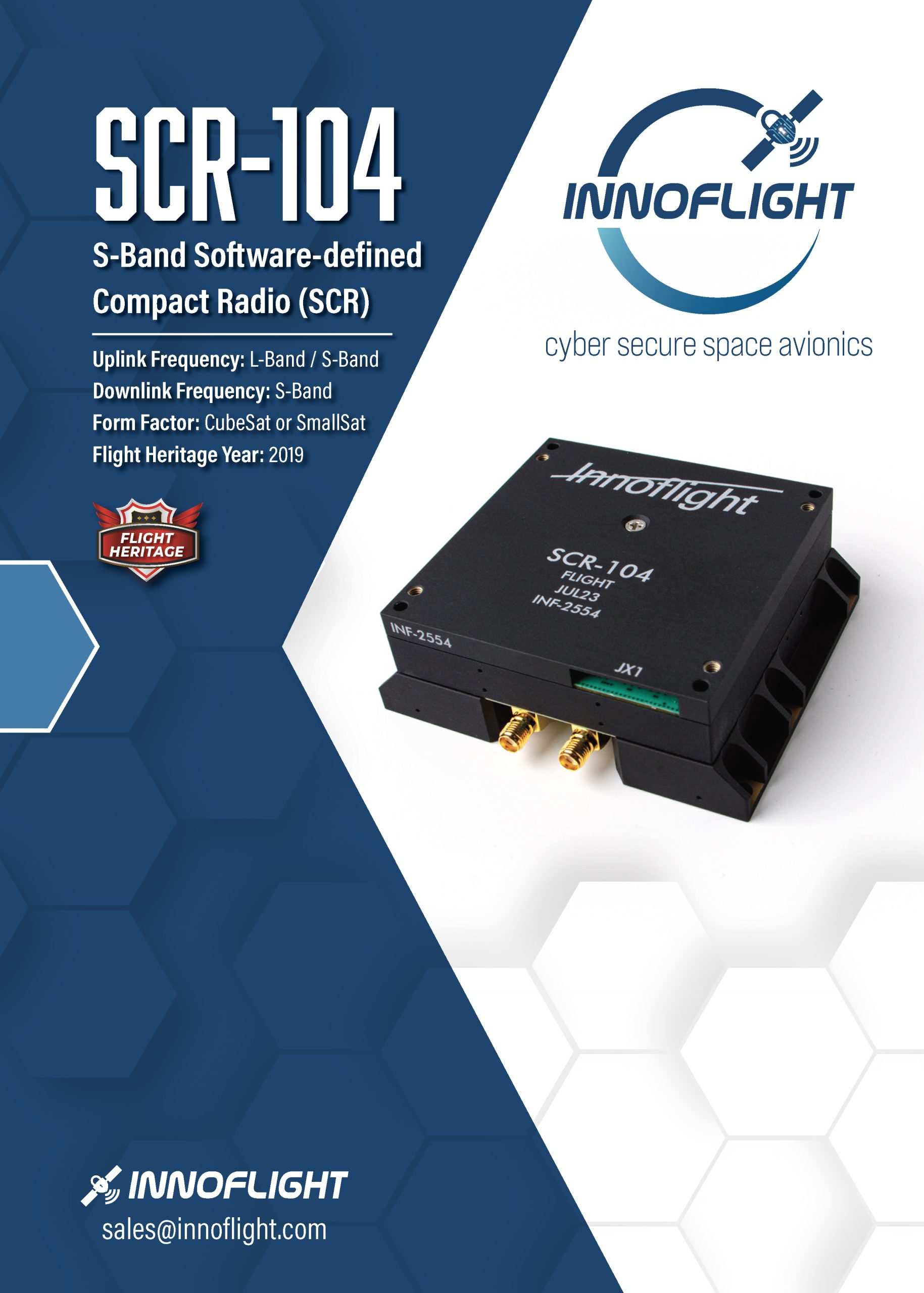

S-Band Software-defined Compact Radio (SCR)

  • On-Orbit Configurable
  • USB and AFSCN SGLS Support
  • Ranging Support (PN/PRN)

Key Characteristics:



Uplink Frequency Bands: L-Band/S-Band

Downlink Frequency Band: S-Band

RF Power: Up to 2 W

Downlink Data Rate: 4.5+ Mbps

Modulation: BPSK, QPSK, OQPSK

Options:

  • AES-256 Encryption
  • Diplexer/Splitter
  • High Power Amplifier (HPA)

Size, Weight & Power:



Size (excluding diplexer/splitter):

  • CubeSat: 82 x 82 x 25 mm
  • SmallSat: 98 x 82 x 33 mm

Mass:

  • CubeSat: 250 g
  • SmallSat: 290 g

Power:

  • 3-15 W

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 9

Flight Heritage: Since 2019

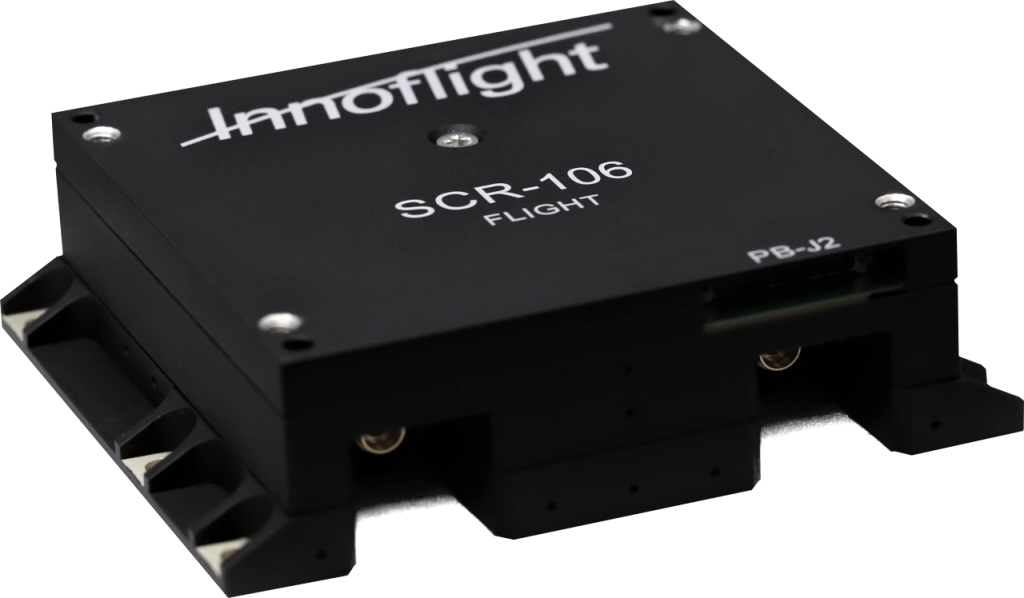

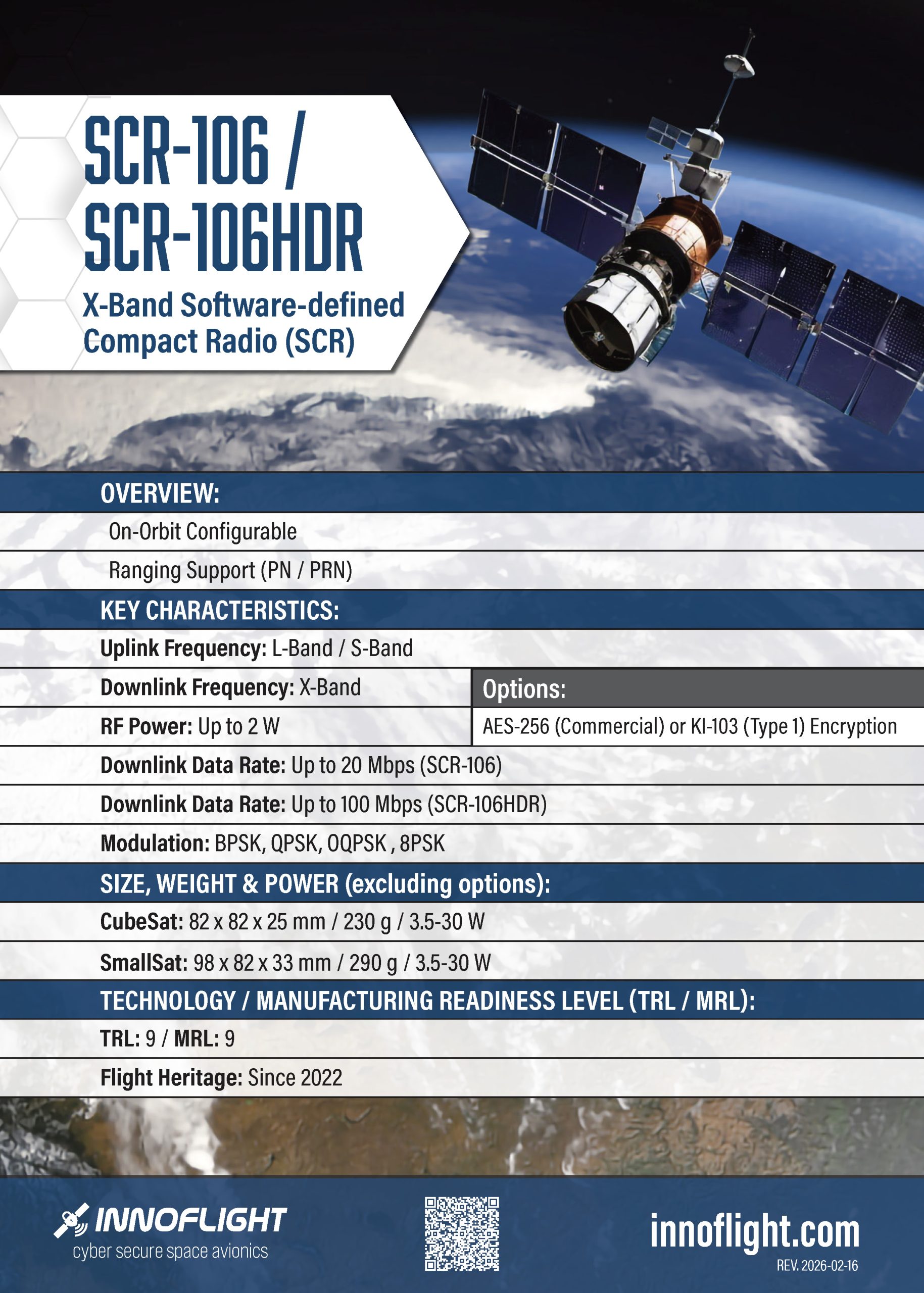

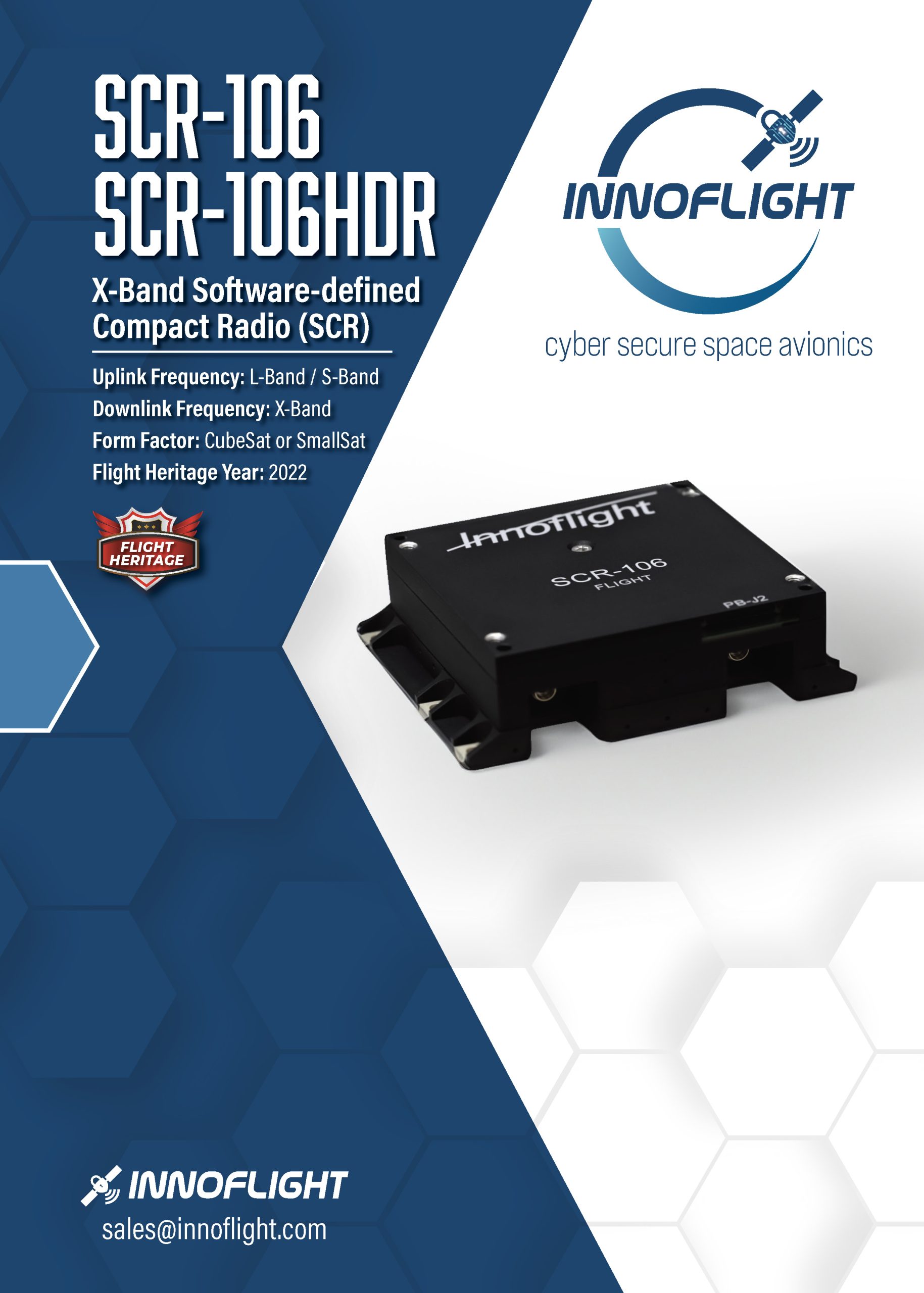

SCR-106 / SCR-106HDR

Overview:

X-Band Software-defined Compact Radio (SCR)

  • On-Orbit Configurable
  • AFSCN SGLS & Non-SGLS Support
  • Ranging Support (PN/PRN)

Key Characteristics:



Uplink Frequency Bands: L-Band/S-Band

Downlink Frequency Band: X-Band

RF Power: Up to 2 W

Downlink Data Rate:

  • Up to 20 Mbps (SCR-106)
  • Up to 100 Mbps (SCR-106HDR)

Modulation: BPSK, QPSK, OQPSK

Options:

  • AES-256 Encryption
  • High Power Amplifier (HPA)
  • X-Band Uplink

Size, Weight & Power:



Form Factor: CubeSat or SmallSat

Size:

  • CubeSat: 82 x 82 x 25 mm
  • SmallSat: 98 x 82 x 28 mm

Mass:

  • CubeSat: 250 g
  • SmallSat: 290 g

Power:

  • 3.5-30 W

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 9

Flight Heritage: Since 2022

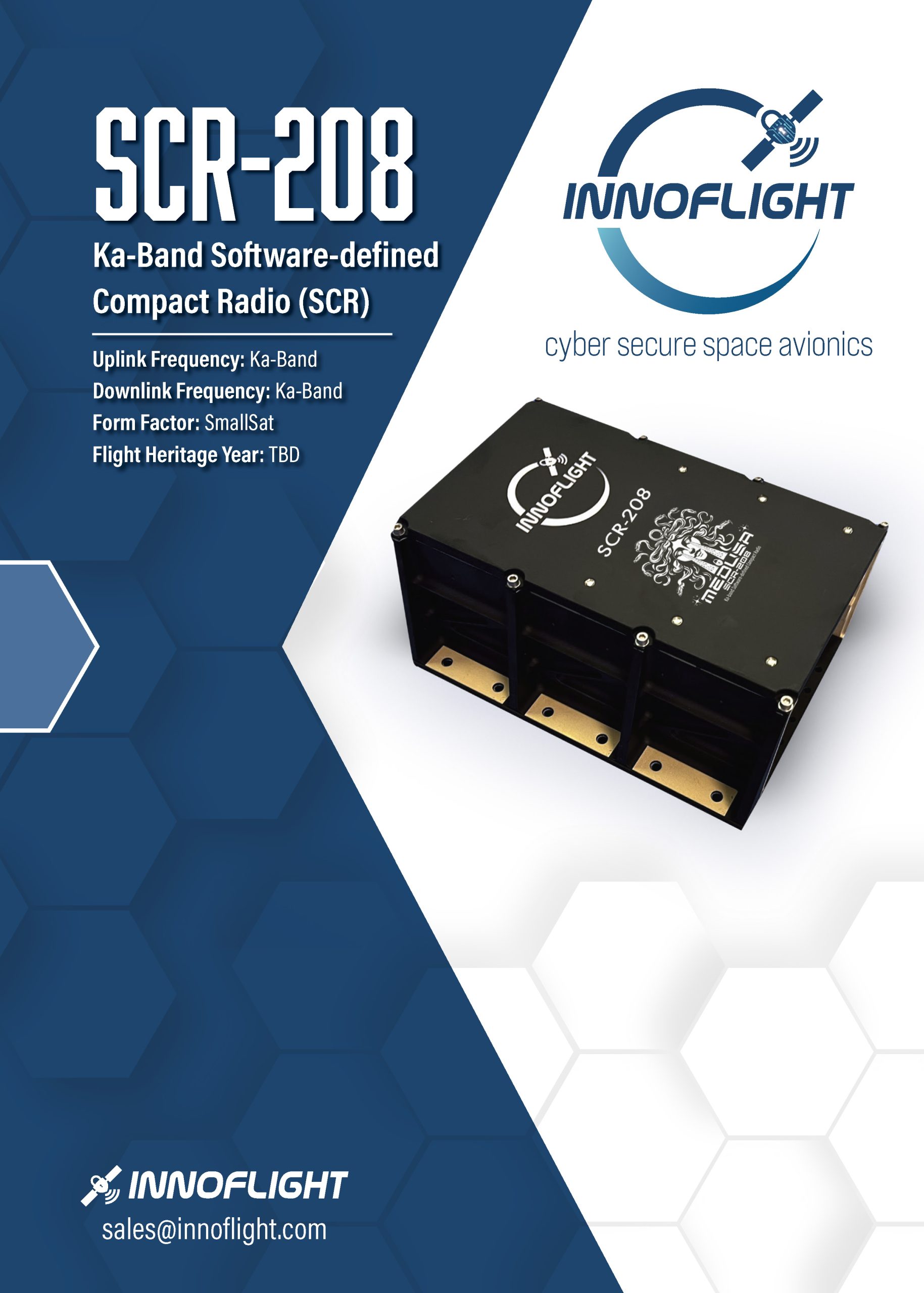

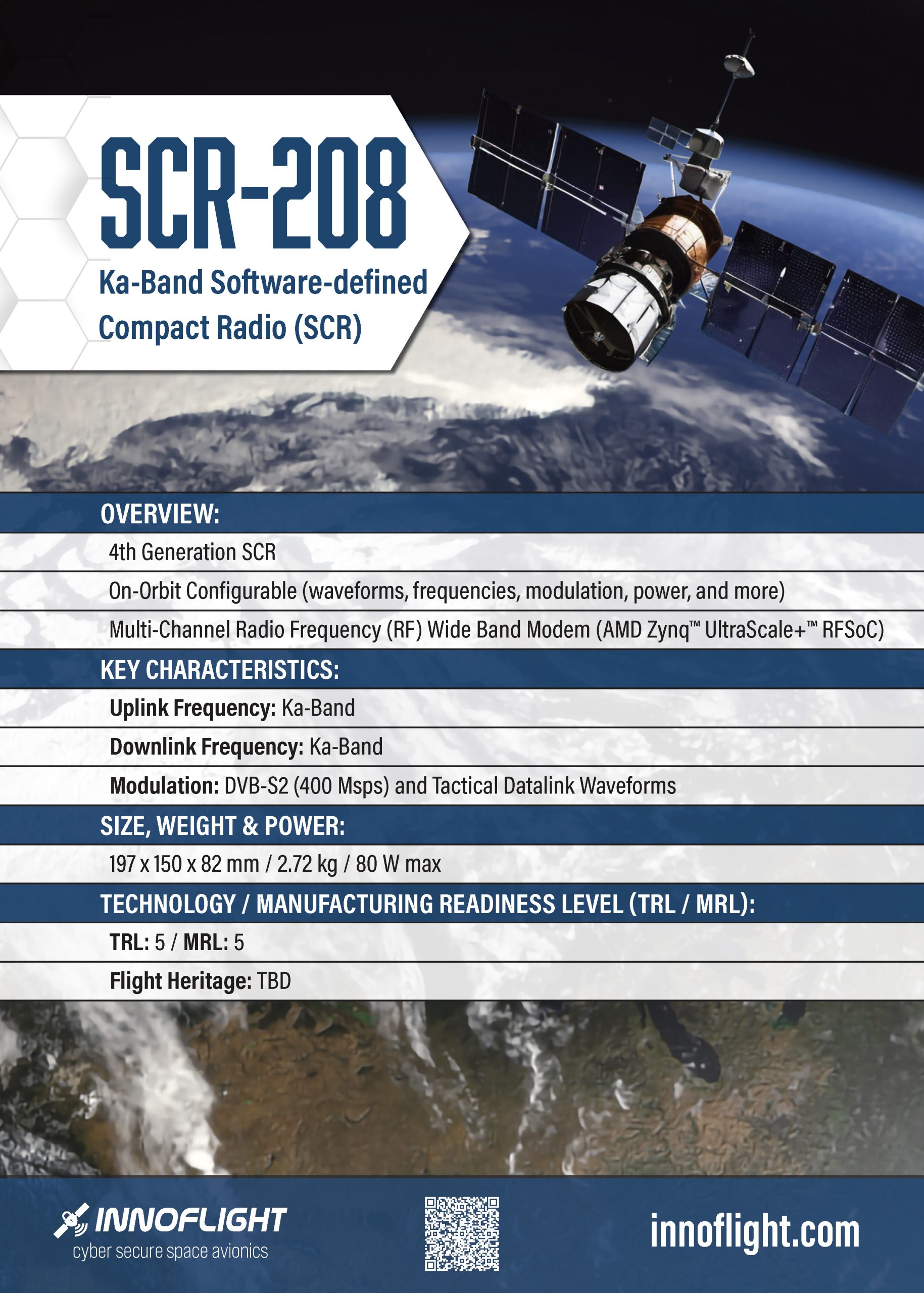

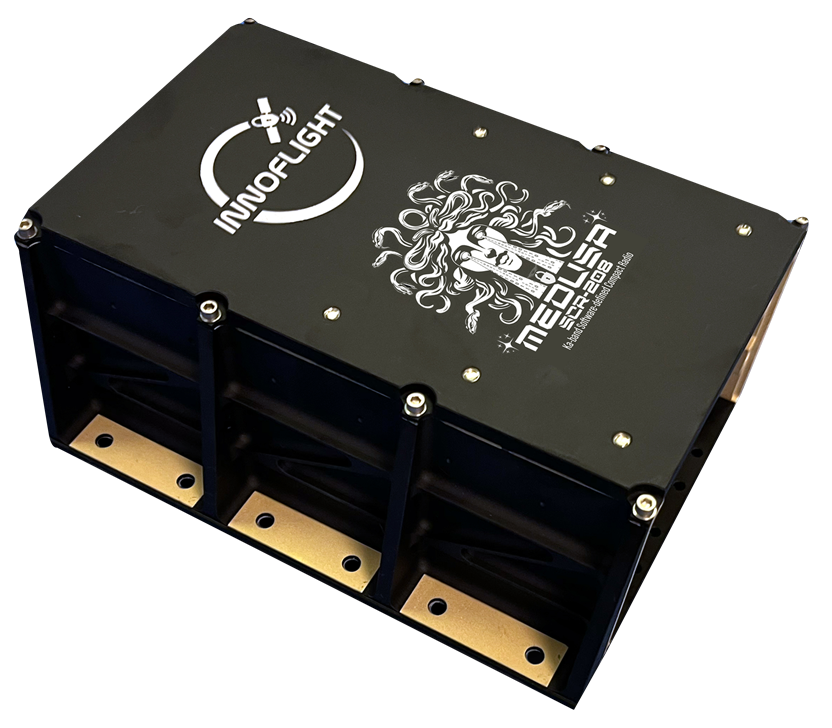

Overview:

Ka-Band Software-defined Compact Radio (SCR)

  • On-Orbit Configurable
  • Ranging Support (PN/PRN)

Key Characteristics:



Uplink Frequency Band: Ka-Band

Downlink Frequency Band: Ka-Band

RF Power: Up to 3 W

Data Rate: Up to 100 Mbps

Modulation: BPSK, QPSK, OQPSK, 8PSK

Options:

  • AES-256 Encryption
  • High Power Amplifier (HPA)

Size, Weight & Power:



Form Factor: SmallSat

Size:

  •  98 x 87 x 39 mm

Mass:

  • 404 g

Power:

  • 12-50 W

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 7

Flight Heritage: Expected in 2023

Overview:

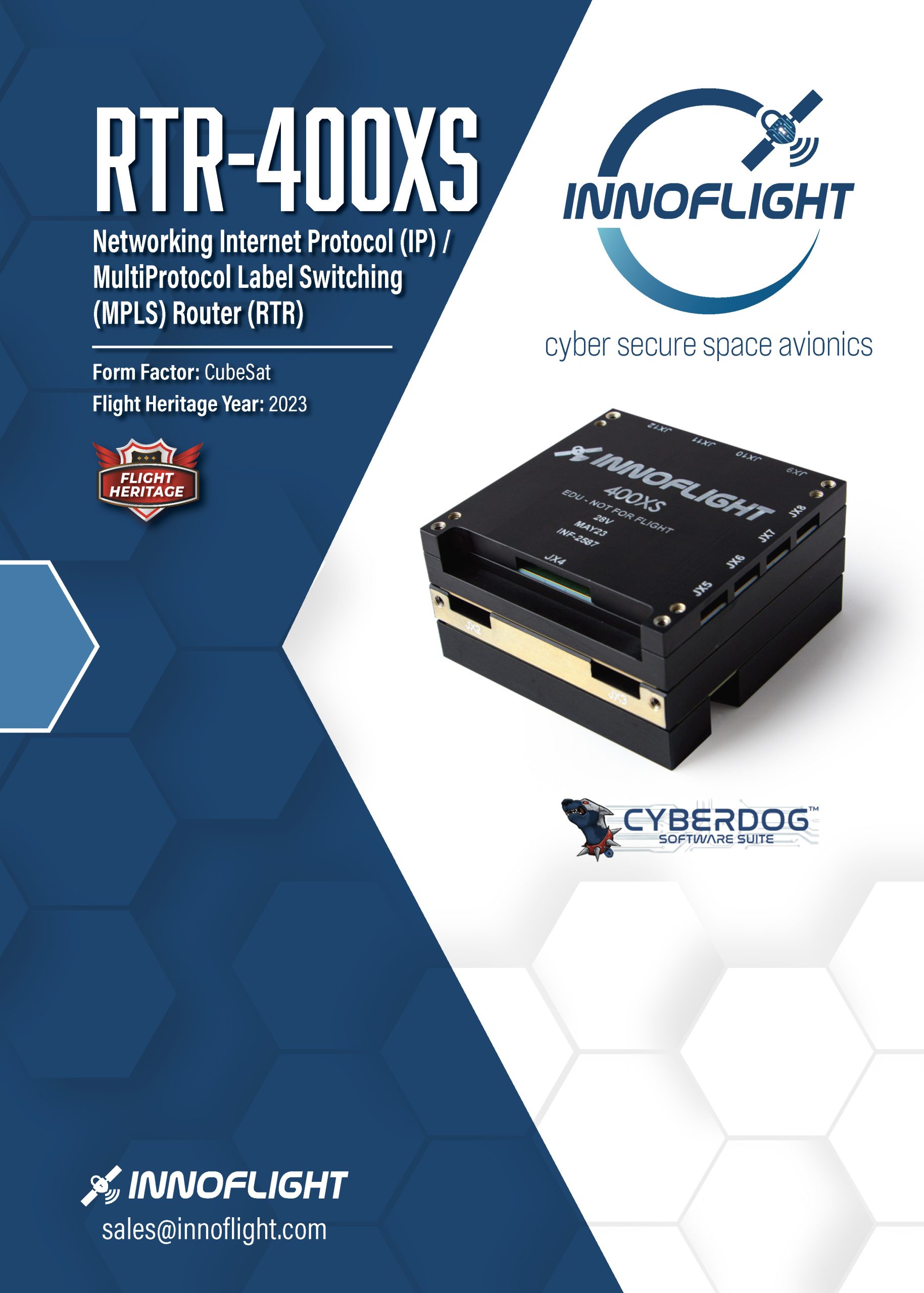

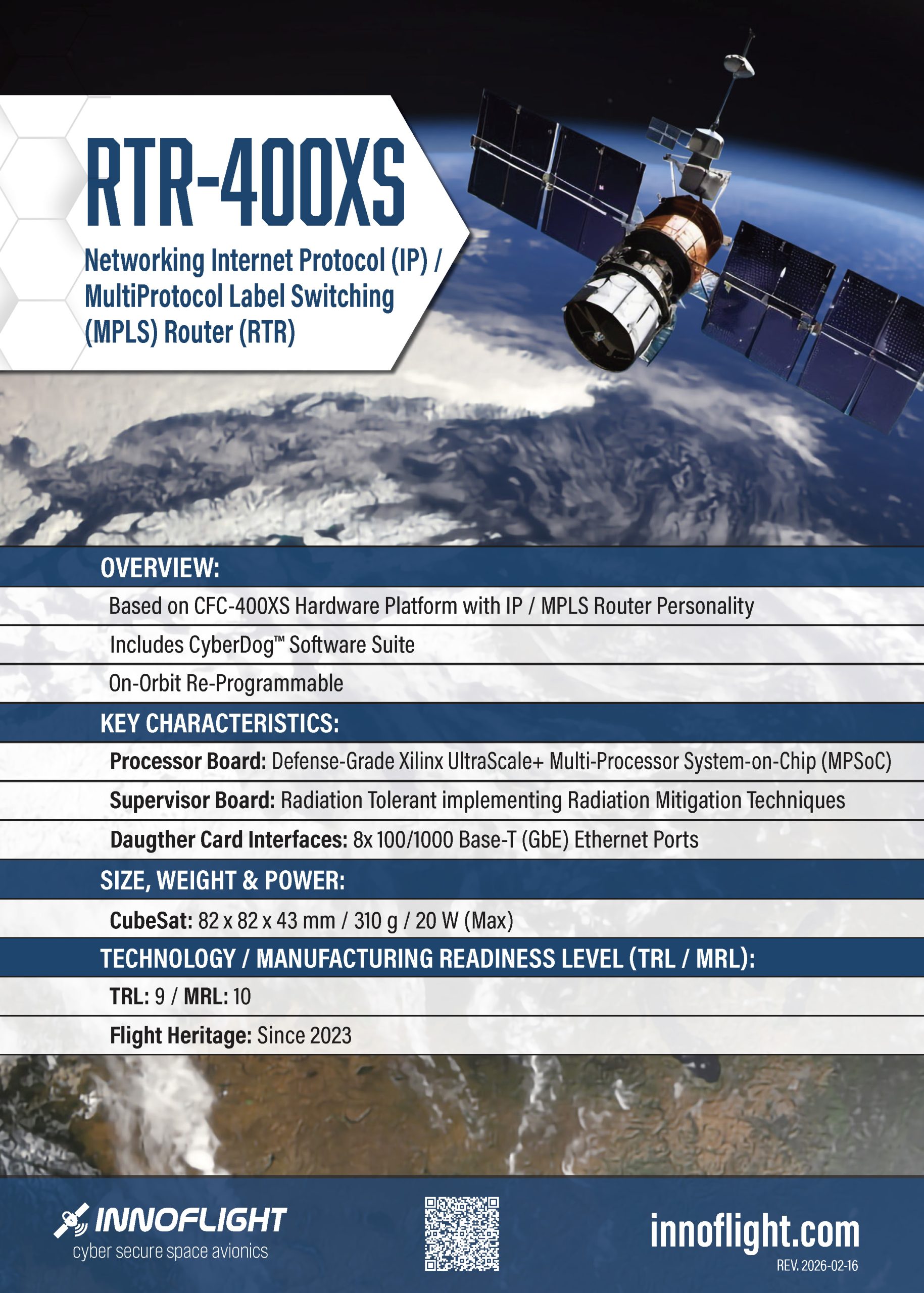

Networking Internet Protocol (IP) Router (RTR)

  • Based on CFC-400XS Hardware Platform
  • On-Orbit Re-Programmable

Key Characteristics:



Open Systems Interconnection (OSI) Layer 3 IP/MPLS Router

Supports Up to 8x 100/1000 Base-T (GbE) Ethernet Ports

Interfaces: 8x 100/1000 Base-T (GbE) Ethernet Ports

Processing: Defense-Grade Xilinx UltraScale+ Multi-Processor System-on-Chip (MPSoC)

Radiation Tolerant Supervisor

Includes CyberDog™ Software Suite

Size, Weight & Power:



Form Factor: CubeSat

Size:

  • 82 x 82 x 43 mm

Mass:

  • 310 g

Power:

  • 20 W Max

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 9

Flight Heritage: Since 2023

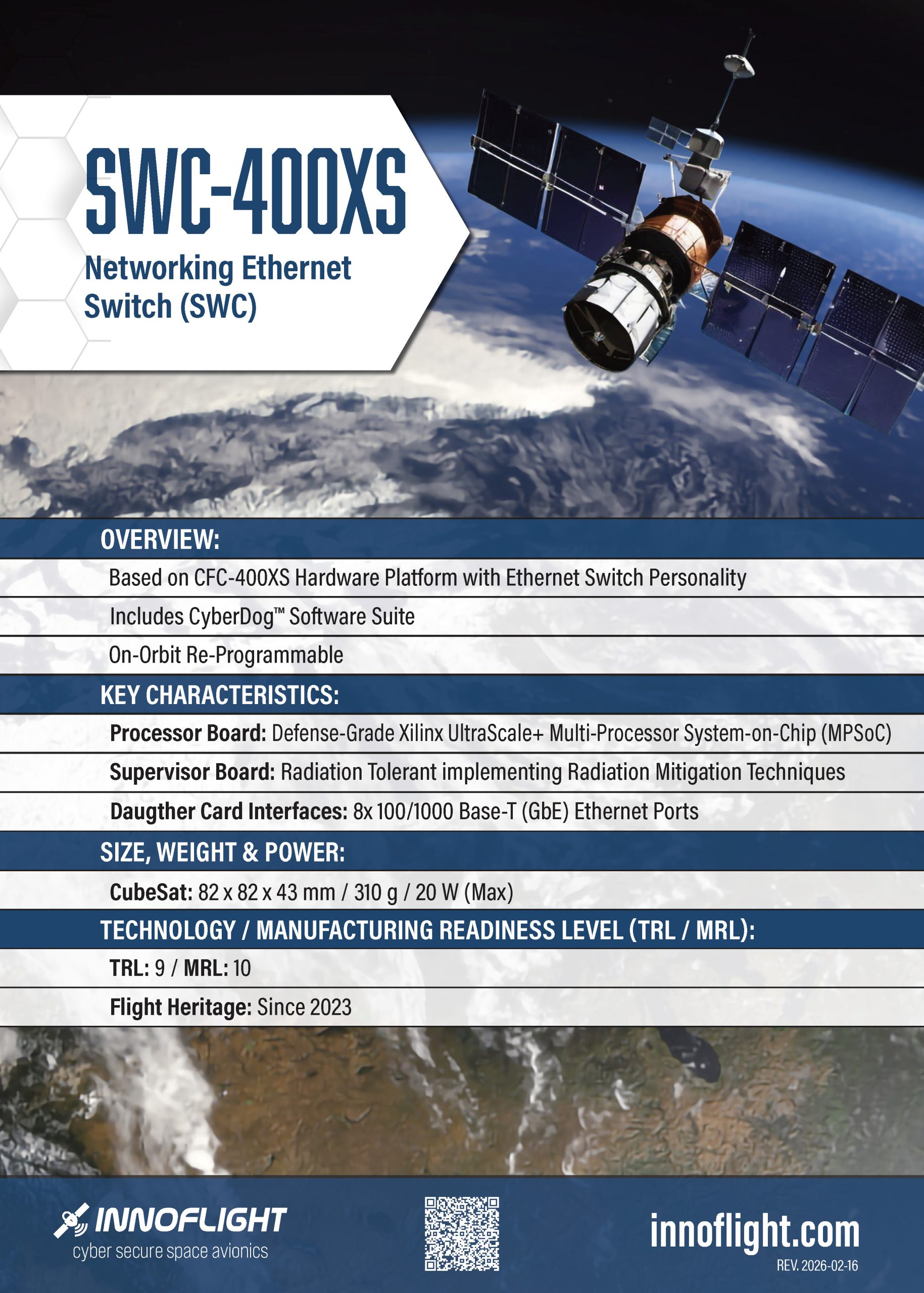

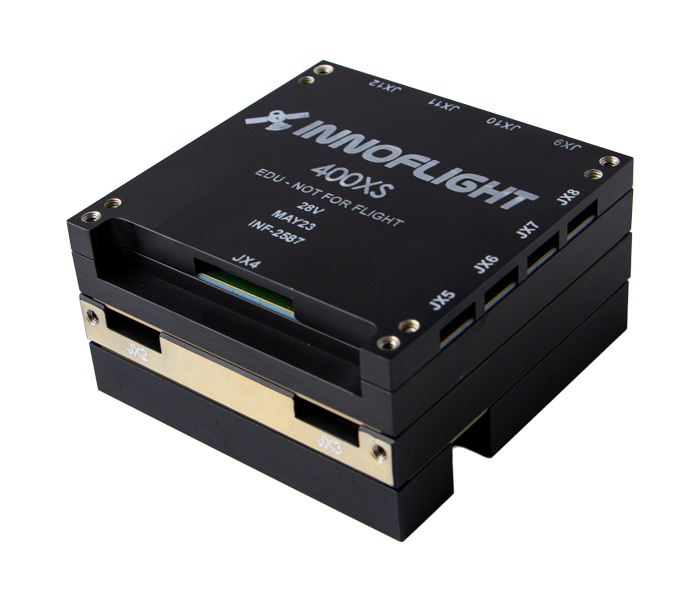

Overview:

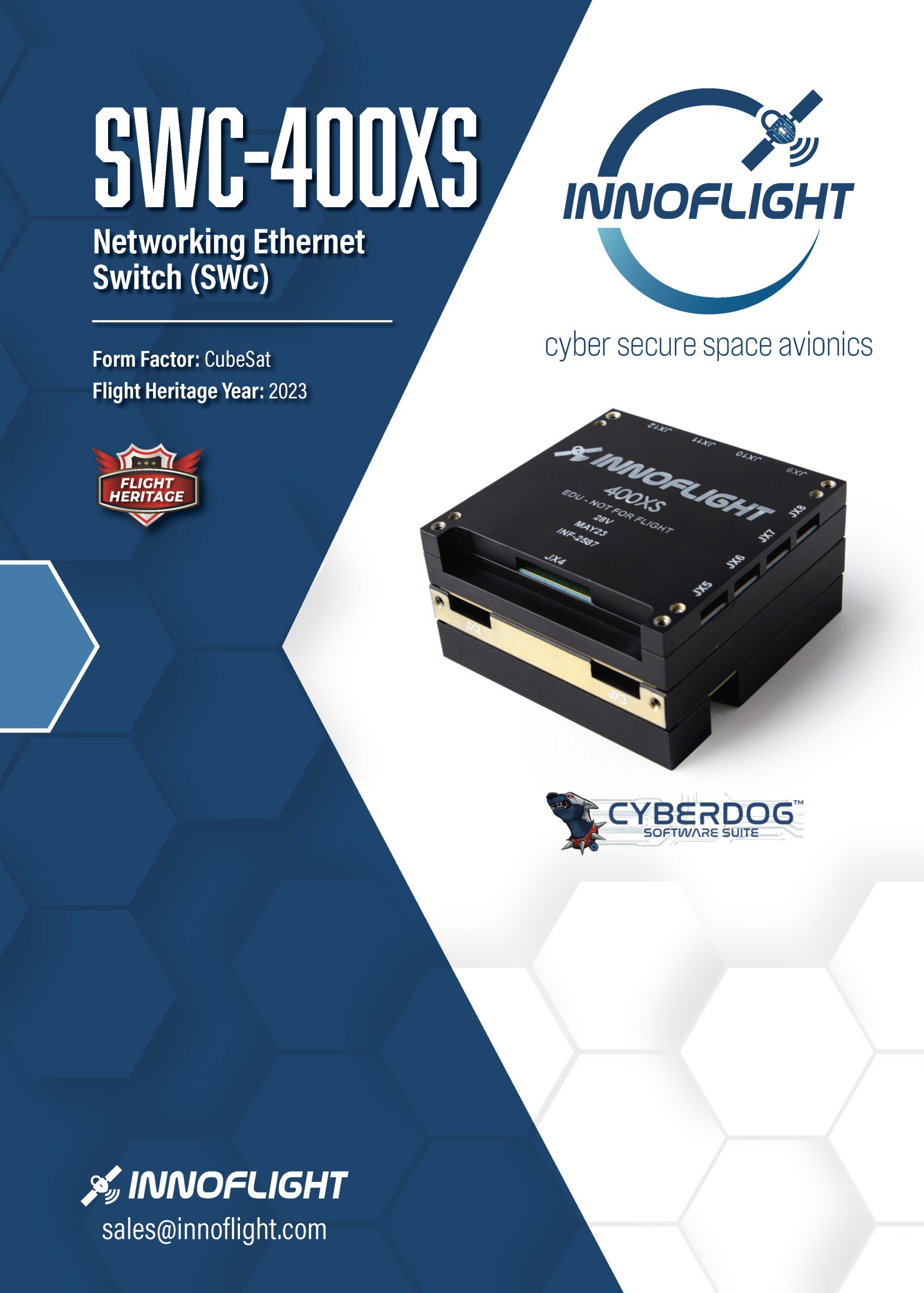

Networking Ethernet Switch (SWC)

  • Based on CFC-400XS Hardware Platform
  • On-Orbit Re-Programmable

Key Characteristics:



Open Systems Interconnection (OSI) Layer 2 Ethernet Switch

Interfaces: 8x 100/1000 Base-T (GbE) Ethernet Ports

Processing: Defense-Grade Xilinx UltraScale+ Multi-Processor System-on-Chip (MPSoC)

Radiation Tolerant Supervisor

Includes CyberDog™ Software Suite

Size, Weight & Power:



Form Factor: CubeSat

Size:

  • 82 x 82 x 43 mm

Mass:

  • 310 g

Power:

  • 20 W Max

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 9

Flight Heritage: Since 2023

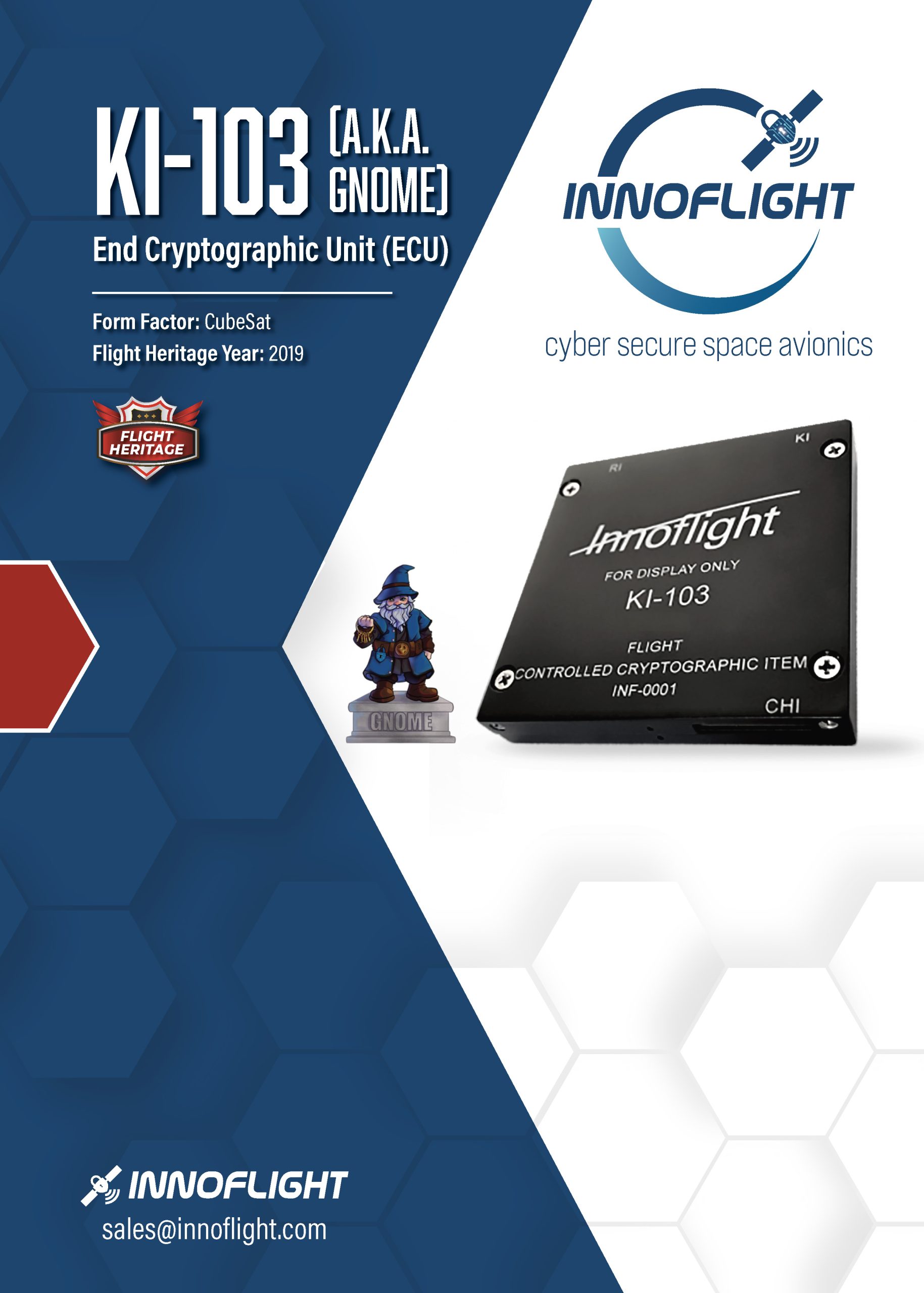

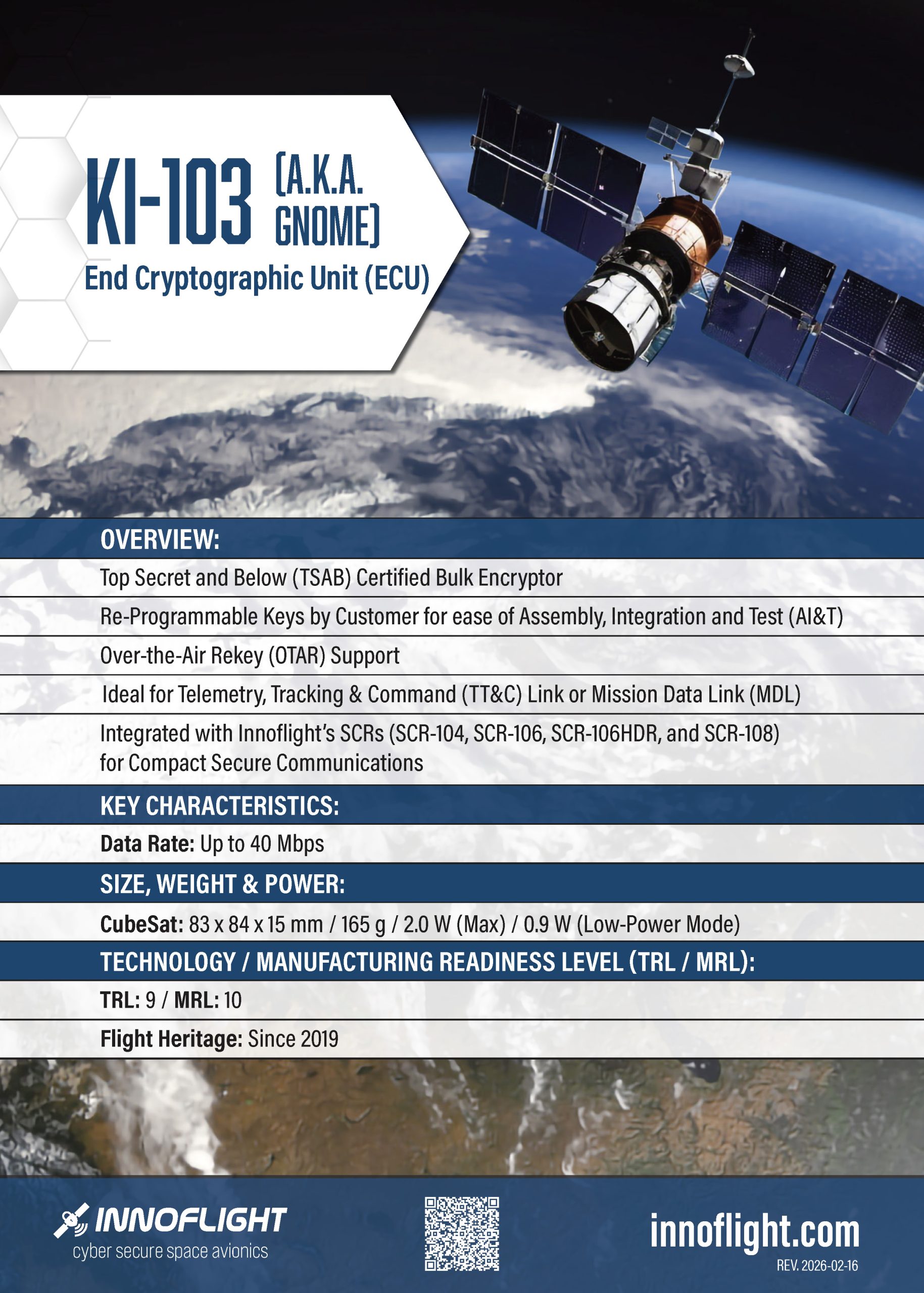

KI-103 (a.k.a. Gnome)

Overview:

“Bulk” End Cryptographic Unit (ECU)

  • Top Secret and Below (TSAB) Certified
  • Ideal for Telemetry, Tracking & Command (TT&C) Link and Mission Data Link (MDL)
  • Re-Programmable Keys for ease of Assembly, Integration and Test (AI&T)

Key Characteristics:



Data Rate: Up to 40 Mbps

Over-the-Air Rekey (OTAR) Support

Integrated with Innoflight’s SCRs (SCR-104, SCR-106, SCR-106HDR, and SCR-108) for Compact Secure Communications

Size, Weight & Power:



Form Factor: CubeSat

Size:

  • 83 x 84 x 15 mm

Mass:

  • 165 g

Power:

  • 2.0 W Max / 0.9 W Low-Power Mode

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 9

Flight Heritage: Since 2019

Overview:

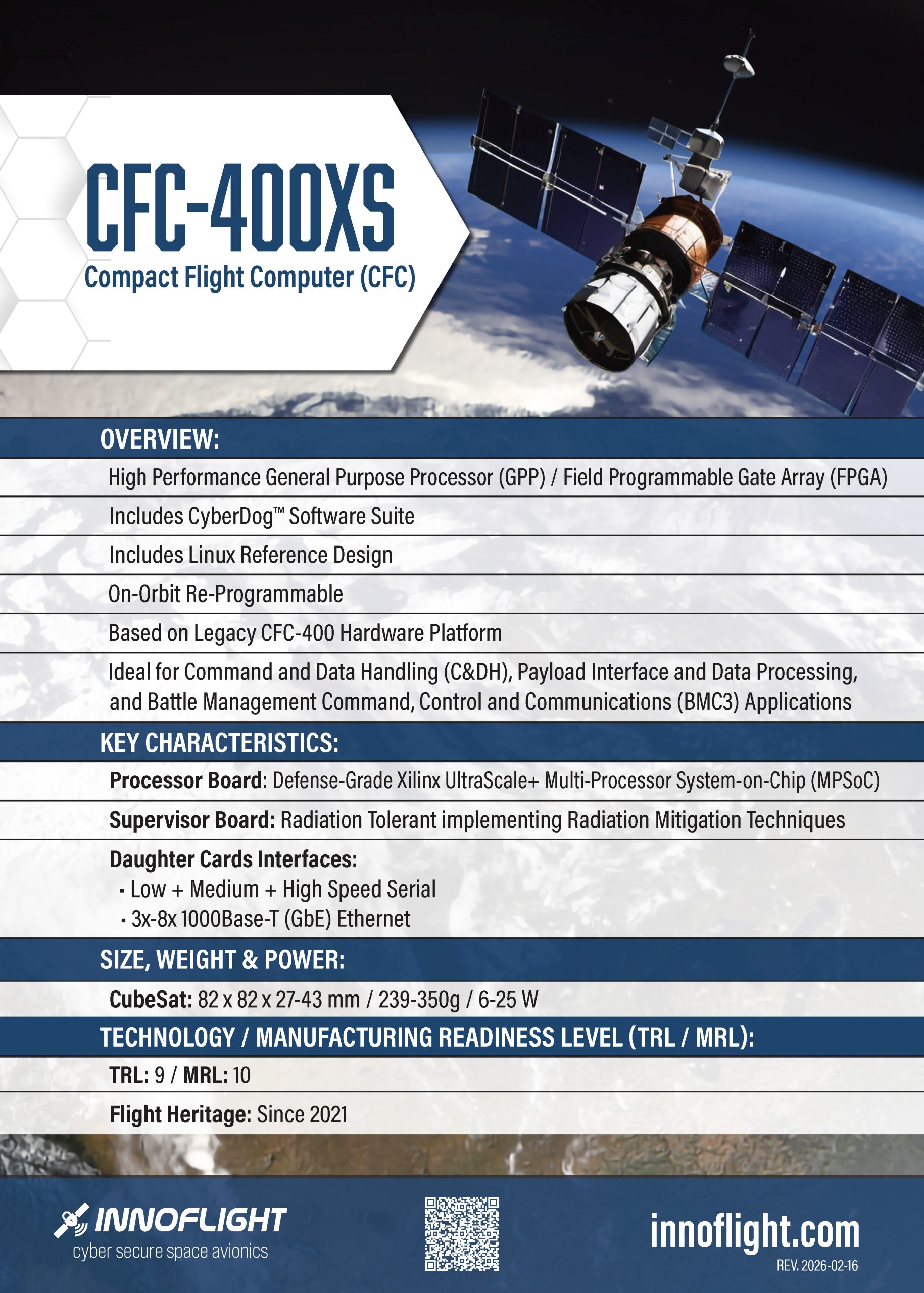

General Purpose Processor (GPP) Compact Flight Computer (CFC)

  • High Performance
  • Based on Legacy CFC-400 Hardware Platform
  • On-Orbit Re-Programmable
  • Ideal for Command and Data Handling (C&DH), Payload Interface & Data Processing, and Battle Management Command, Control and Communications (BMC3) Applications

Key Characteristics:



Processing: Defense-Grade Xilinx UltraScale+ Multi-Processor System-on-Chip (MPSoC)

Processor System-on-Chip (MPSoC)
Variety of Daughter Cards with Interfaces:

  • Low + Medium + High Speed Serial
  • 3x-8x 1000 Base-T (GbE) Ethernet

Includes Linux Reference Design
Radiation Tolerant Supervisor

Includes CyberDog™ Software Suite

Size, Weight & Power:



Form Factor: CubeSat

Size:

  • 82 x 82 x 43 mm

Mass:

  • 350 g

Power:

  • 6-25 W

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 9

Flight Heritage: Since 2021

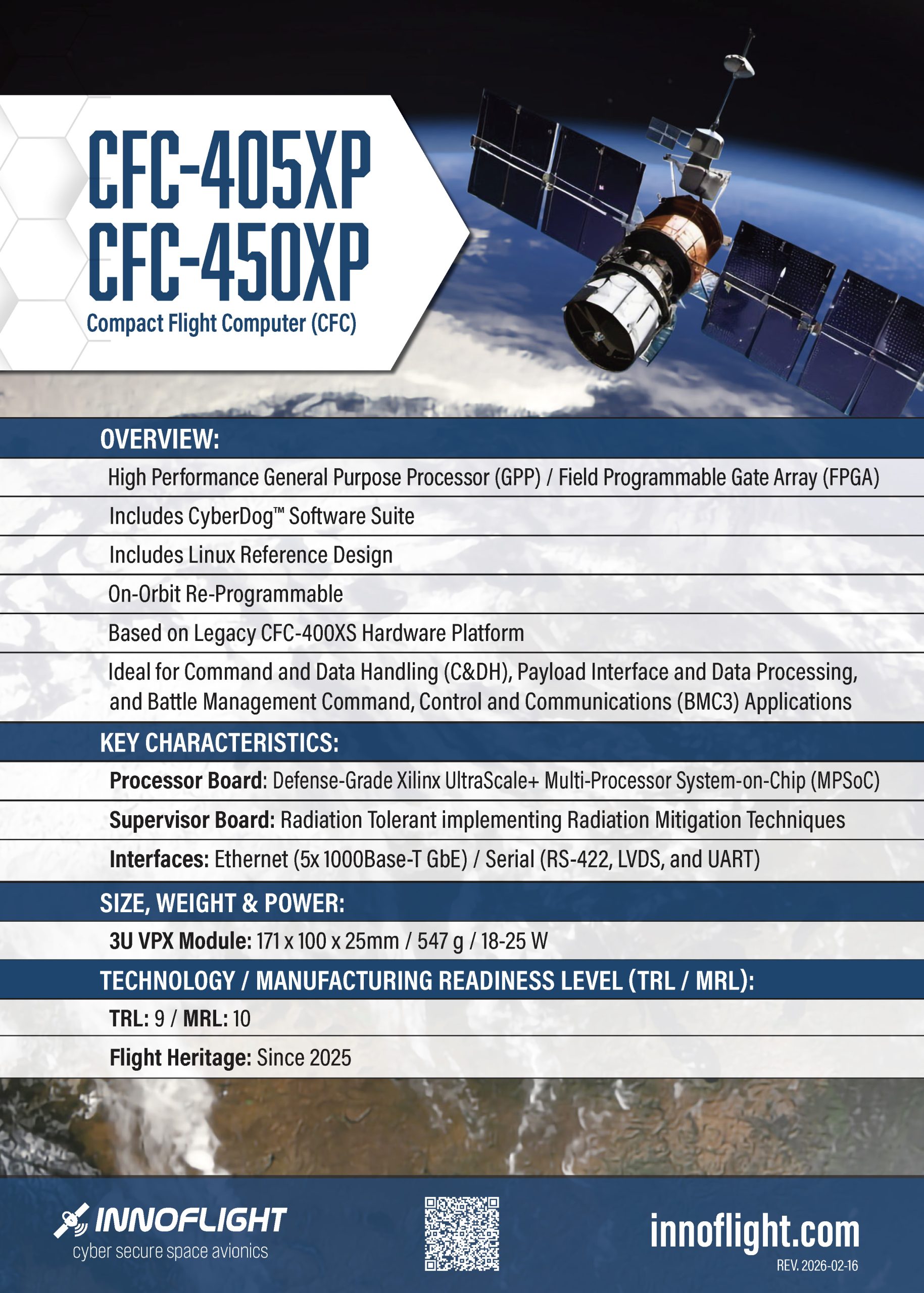

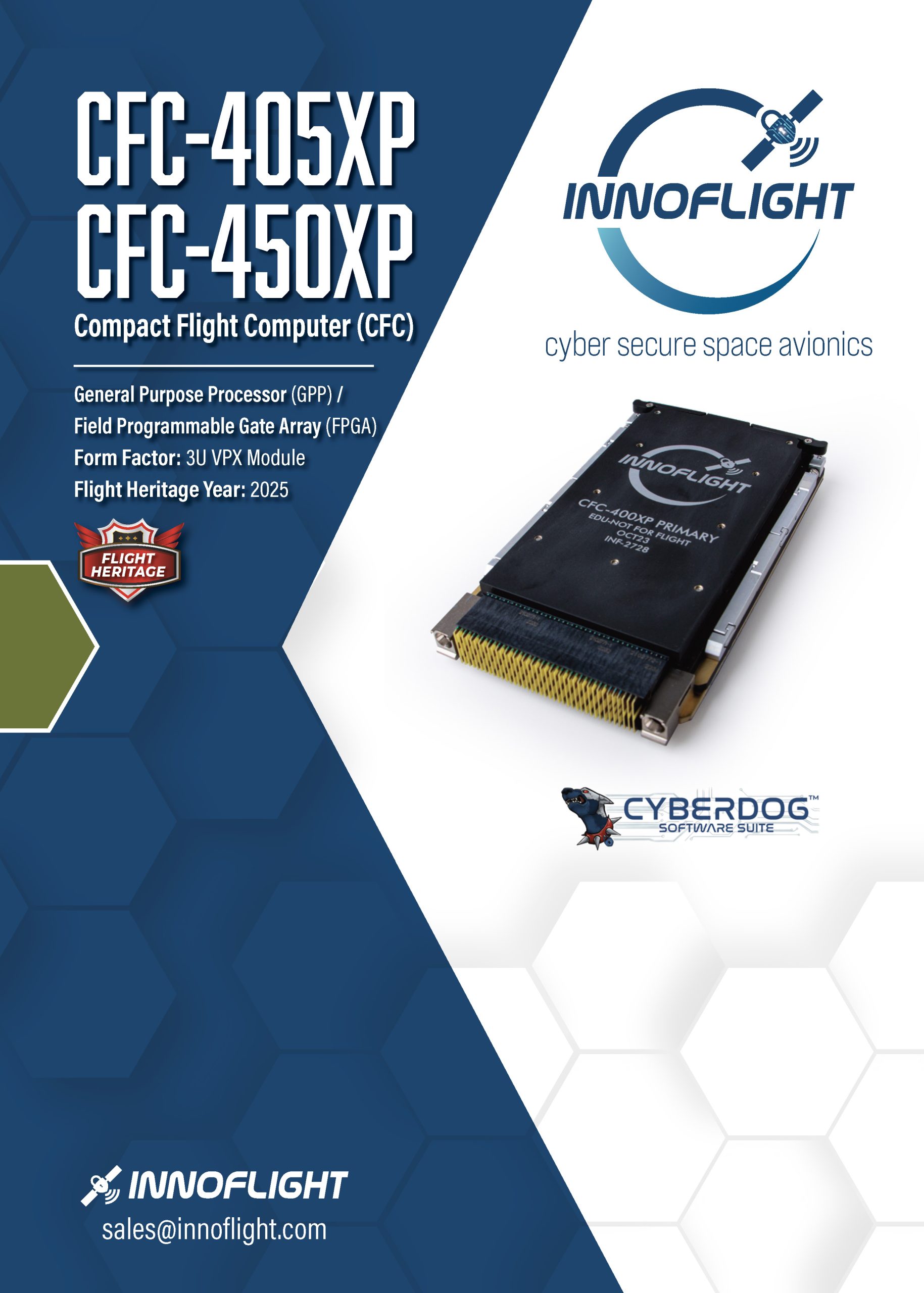

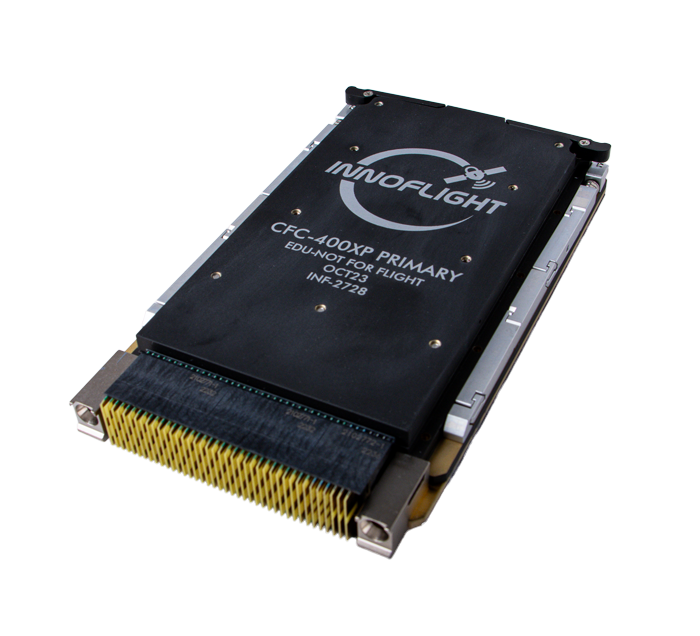

Overview:

General Purpose Processor (GPP) Compact Flight Computer (CFC)

  • High Performance
  • Based on the Legacy CFC-400XS Hardware Platform
  • On-Orbit Re-Programmable
  • Ideal for Command and Data Handling (C&DH), Payload Interface & Data Processing, and Battle Management Command, Control and Communications (BMC3) Applications

Key Characteristics:



Processing: Defense-Grade Xilinx UltraScale+ Multi-Processor System-on-Chip (MPSoC)

Variety of Serial and Ethernet Interfaces

Includes Linux Reference Design

Radiation Tolerant Supervisor

Includes CyberDog™ Software Suite

Size, Weight & Power:



Form Factor: 3U-VPX Module

Size:

  • 172 x 100 x 25 mm

Mass:

  • 610 g

Power:

  • 4-30 W

Technology Readiness Level (TRL) & Flight Heritage:



TRLs:

  • 9 (CFC-400XS)
  • 5 (CFC-400XP)

Flight Heritage:

  • CFC-400XS: Since 2021
  • CFC-400XP: Expected in 2024

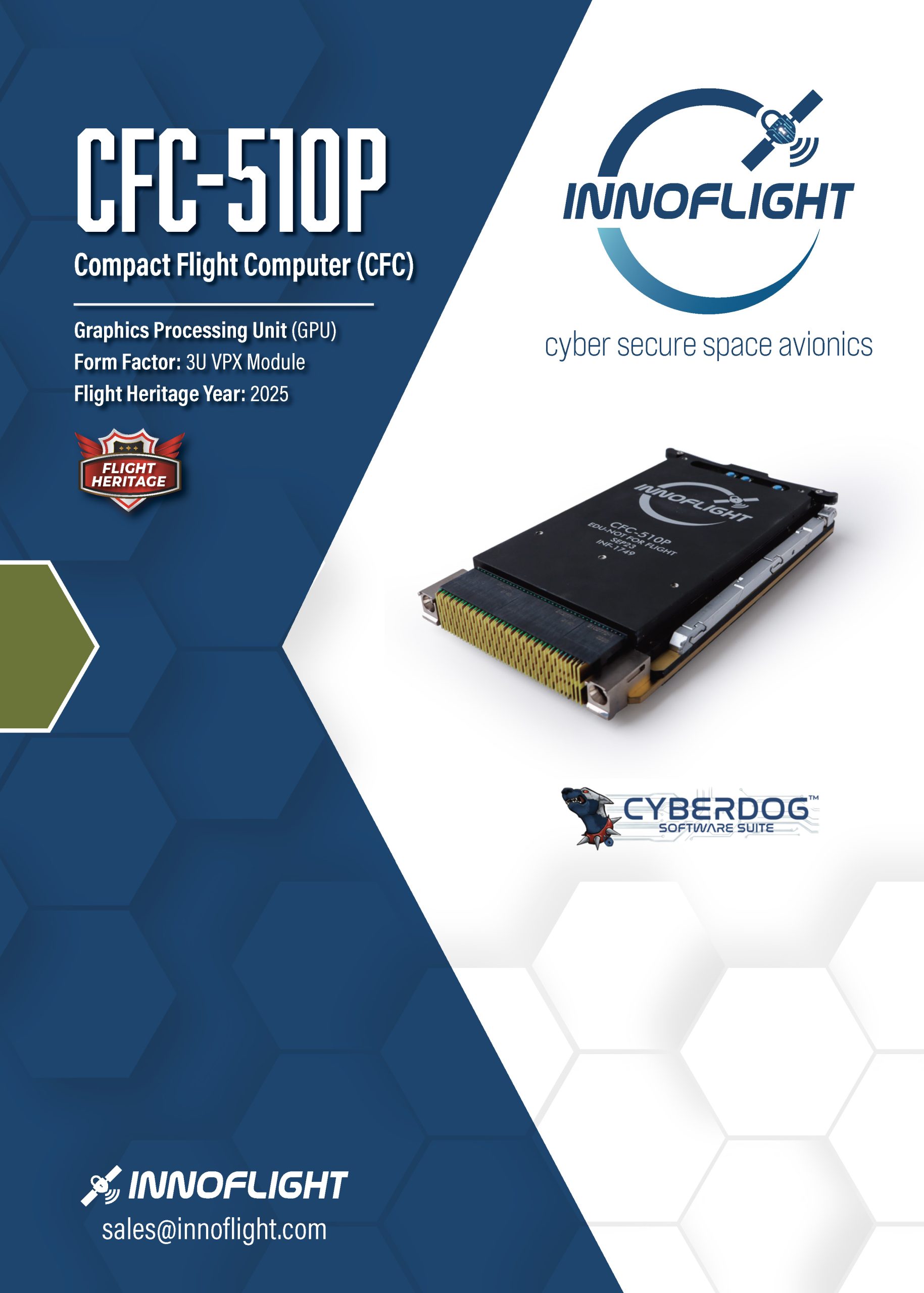

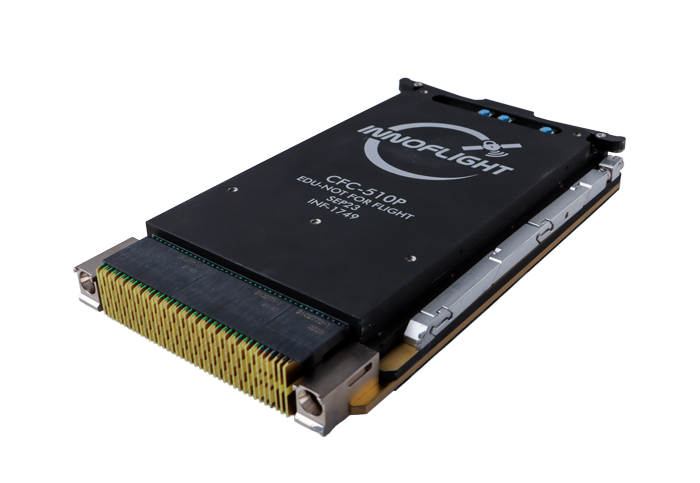

Overview:

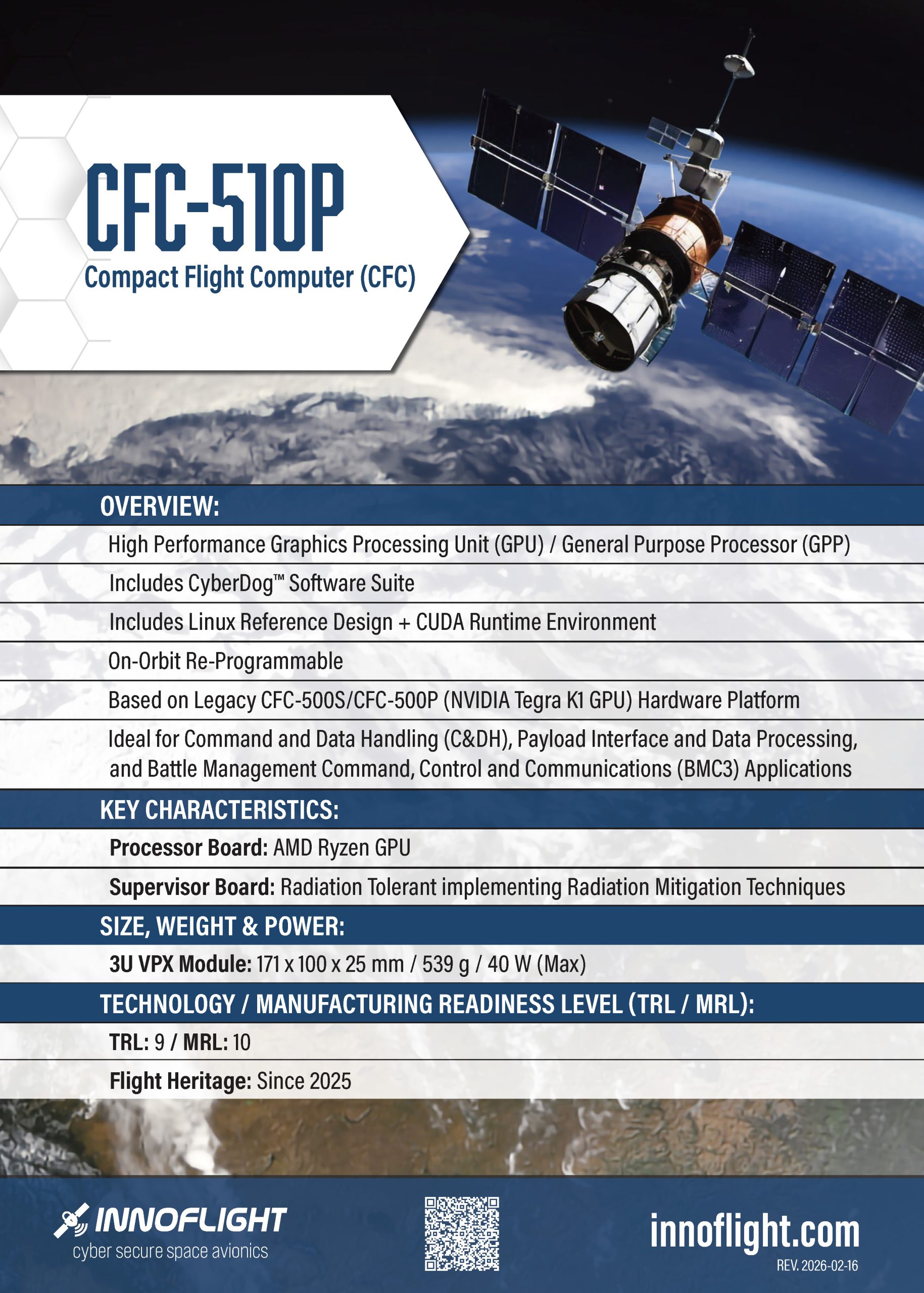

Graphics Processing Unit (GPU) Compact Flight Computer (CFC)

  • High Performance
  • Based on Legacy CFC-500S/CFC-500P (NVIDIA Tegra K1 GPU) Hardware Platform
  • On-Orbit Re-Programmable
  • Ideal for Command and Data Handling (C&DH), Payload Interface & Data Processing, and Battle Management Command, Control and Communications (BMC3) Applications

Key Characteristics:



Processing: AMD Ryzen GPU

Includes Linux Reference Design + CUDA Runtime Environment

Radiation Tolerant Supervisor

Includes CyberDog™ Software Suite

Size, Weight & Power:



Form Factor: 3U-VPX Module

Size:

  • 172 x 100 x 25 mm

Mass:

  • 610 g

Power:

  • 5-30 W

Technology Readiness Level (TRL) & Flight Heritage:



TRLs:

  • 7 (CFC-500P)
  • 5 (CFC-510P)

Flight Heritage:

  • CFC-500P: Expected in 2023
  • CFC-510P: Expected in 2024

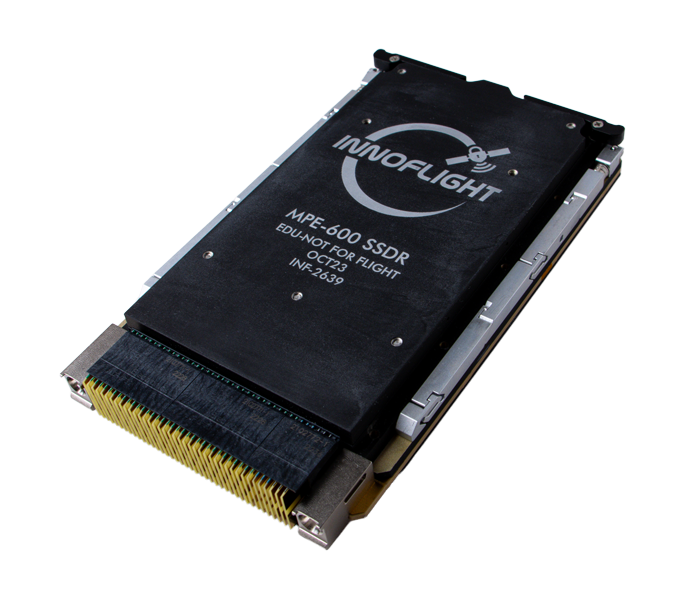

Overview:

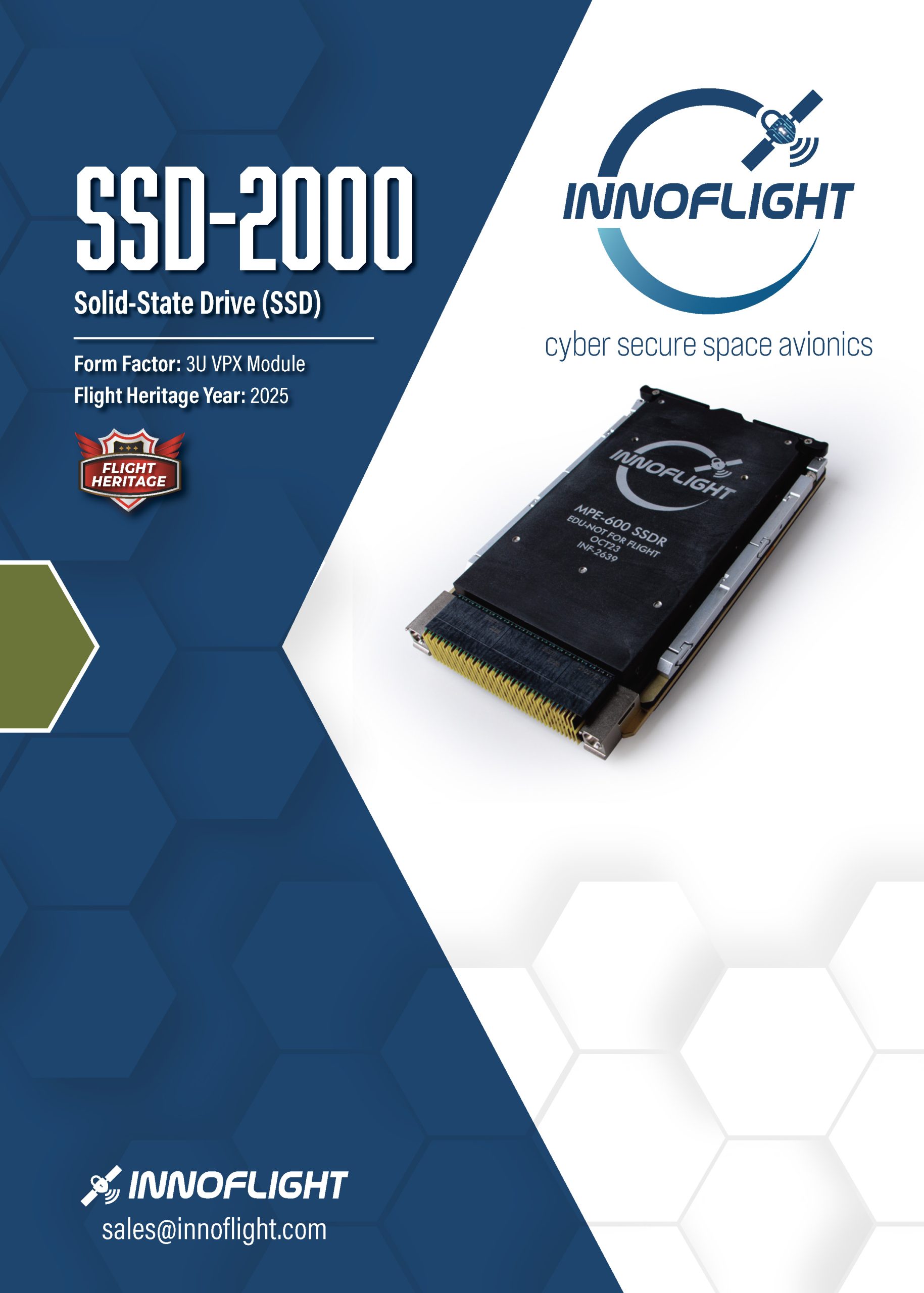

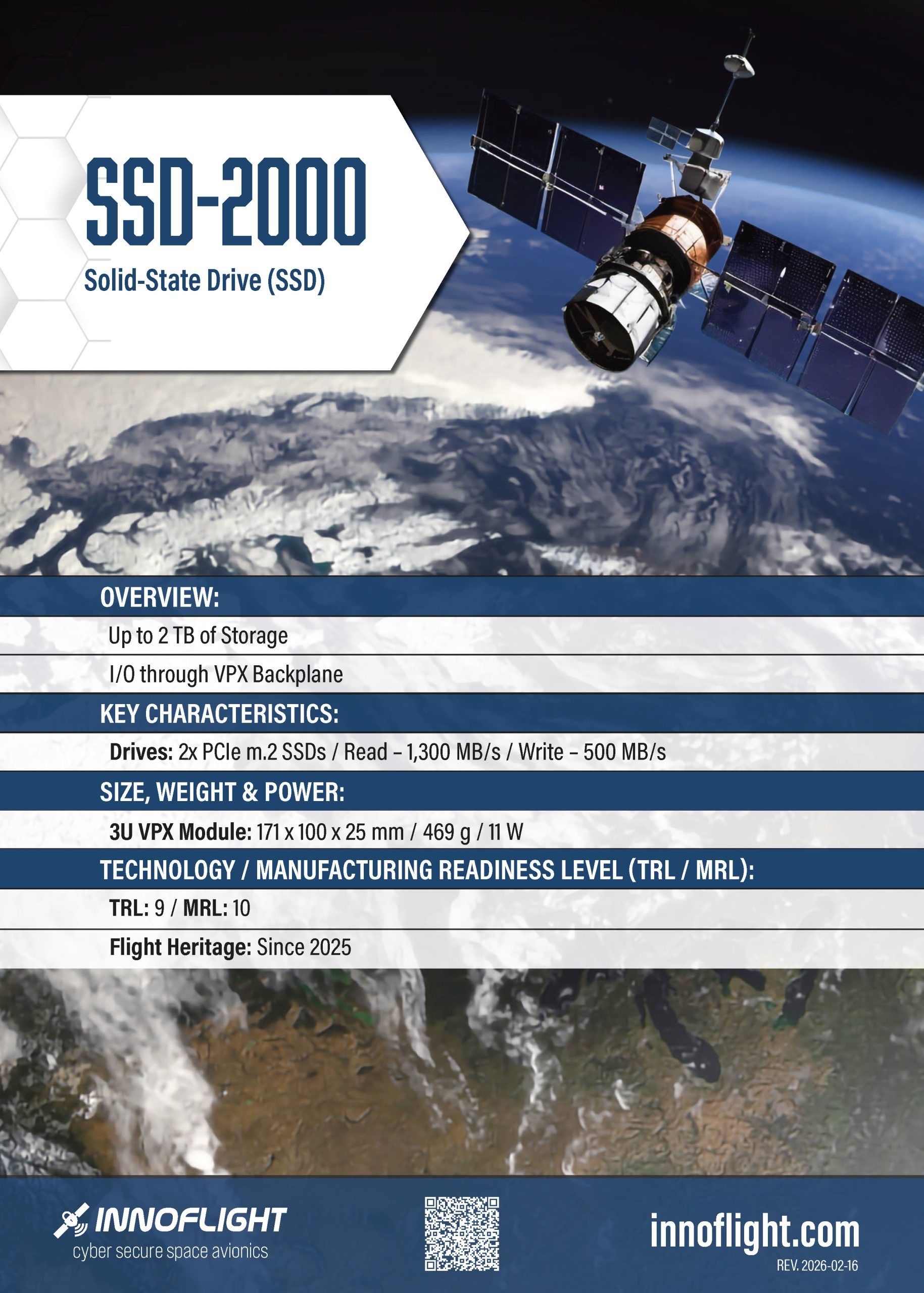

Solid-State Drive (SSD)

  • Up to 2 TB of storage

Key Characteristics:



2x PCIe m.2 SSDs

  • Read – 1,300 MB/s
  • Write – 500 MB/s

I/O through VPX Backplane

Encryption at Rest

Includes CyberDog™ Software Suite

Size, Weight & Power:



Form Factor: 3U-VPX Module

Size:

  • 172 x 100 x 25 mm

Mass:

  • TBD

Power:

  • TBD

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 5

Flight Heritage: Expected in 2024

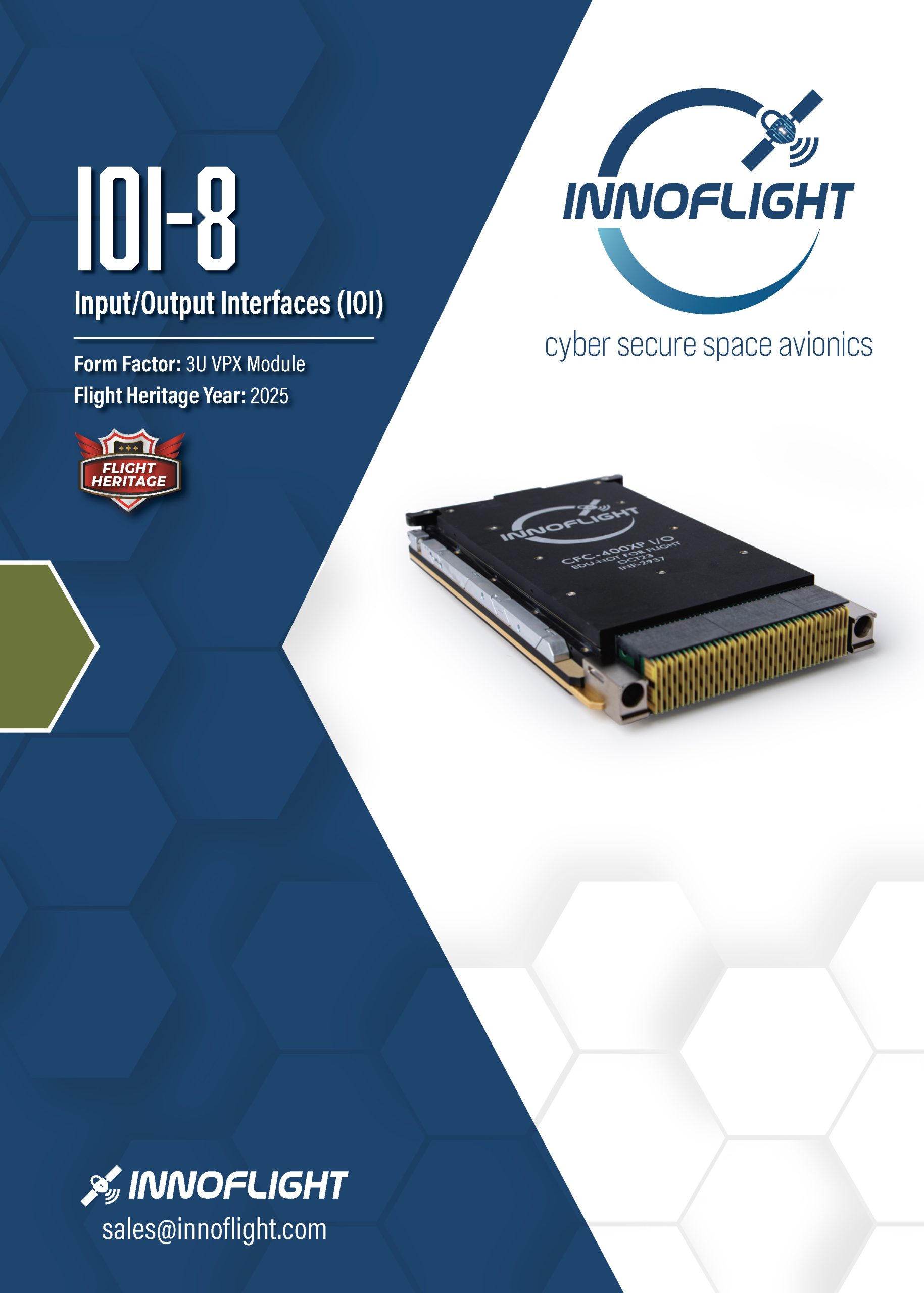

Overview:

Input/Output Interfaces (IOI)

  • Variety of I/O Interfaces including Ethernet

Key Characteristics:



Interfaces:

  • 4x 10GBase-T (10 GbE)
  • 4x 1000Base-T (GbE)

Size, Weight & Power:



Form Factor: 3U-VPX Module

Size:

  • 172 x 100 x 25 mm

Mass:

  • TBD

Power:

  • TBD

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 5

Flight Heritage: Expected in 2024

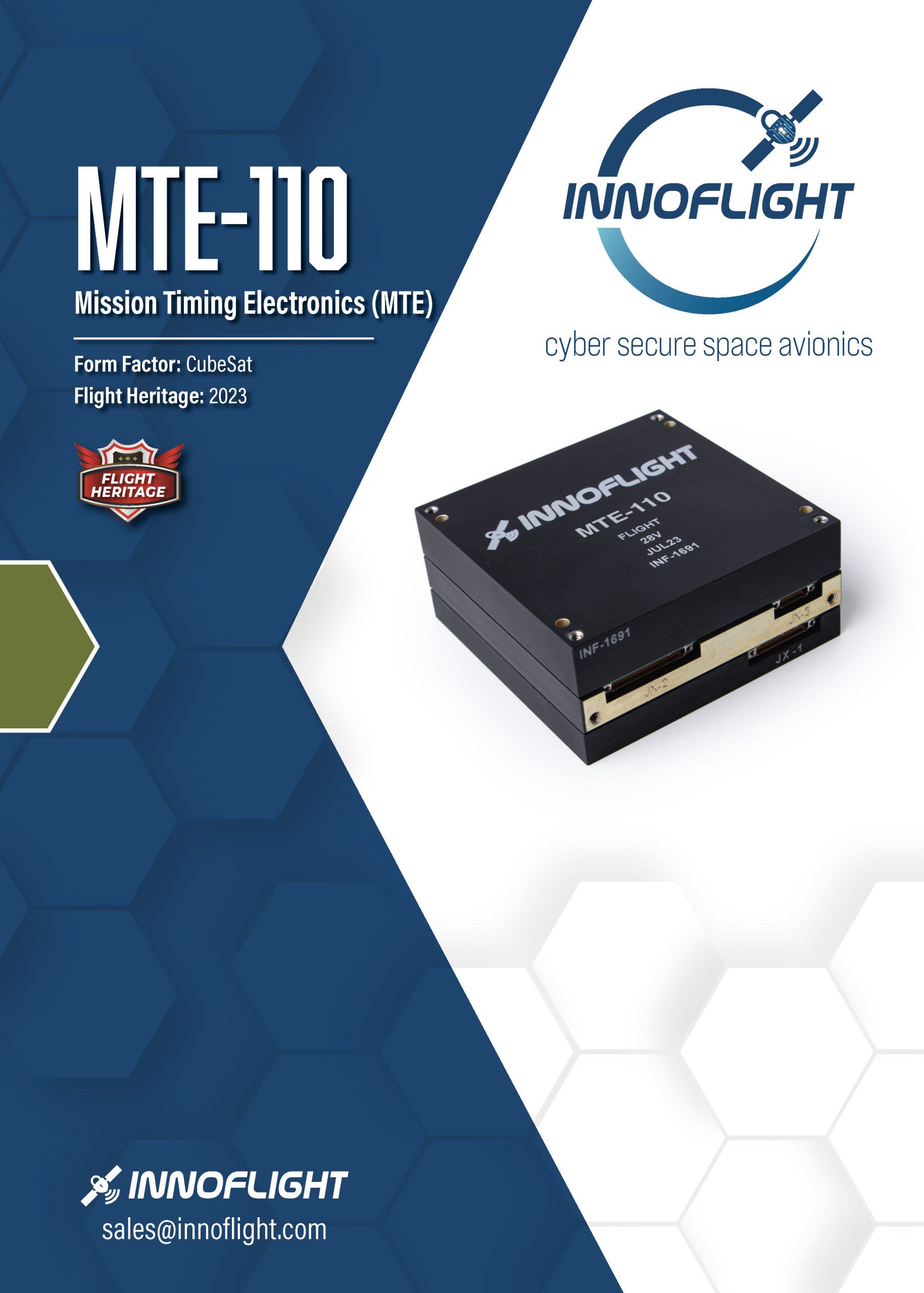

Overview:

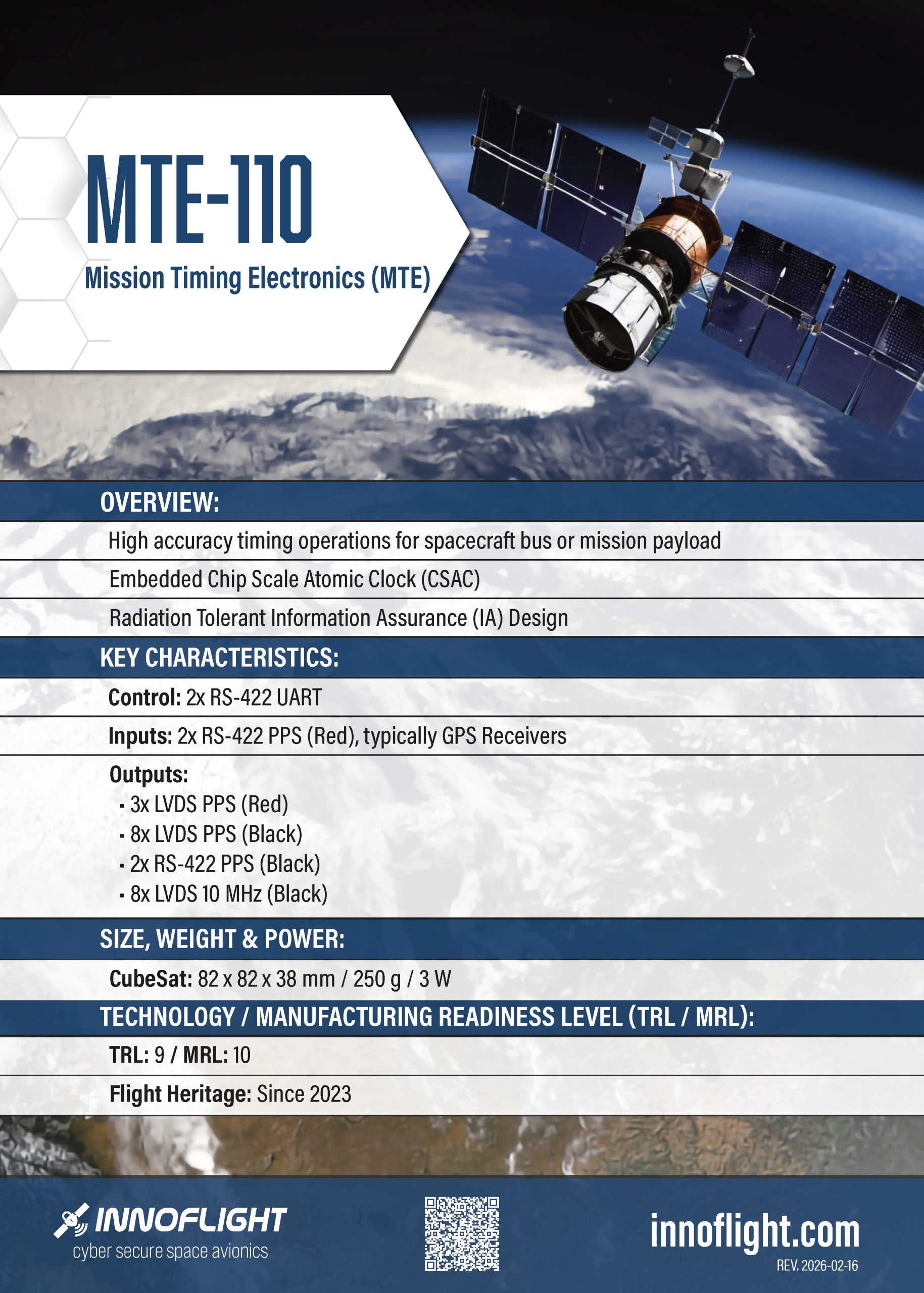

High Precision Mission Timing Electronics (MTE)

  • High accuracy timing operations for spacecraft bus or mission payload

Key Characteristics:



Inputs: 2x PPS

Outputs:

  • 12x+ PPS
  • 8x 10 MHz

Embedded Chip Scale Atomic Clock (CSAC)
Radiation Tolerant Design

Size, Weight & Power:



Form Factor: CubeSat

Size:

  • 82 x 82 x 38 mm

Mass:

  • 250 g

Power:

  • 3 W

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 9

Flight Heritage: Since 2023

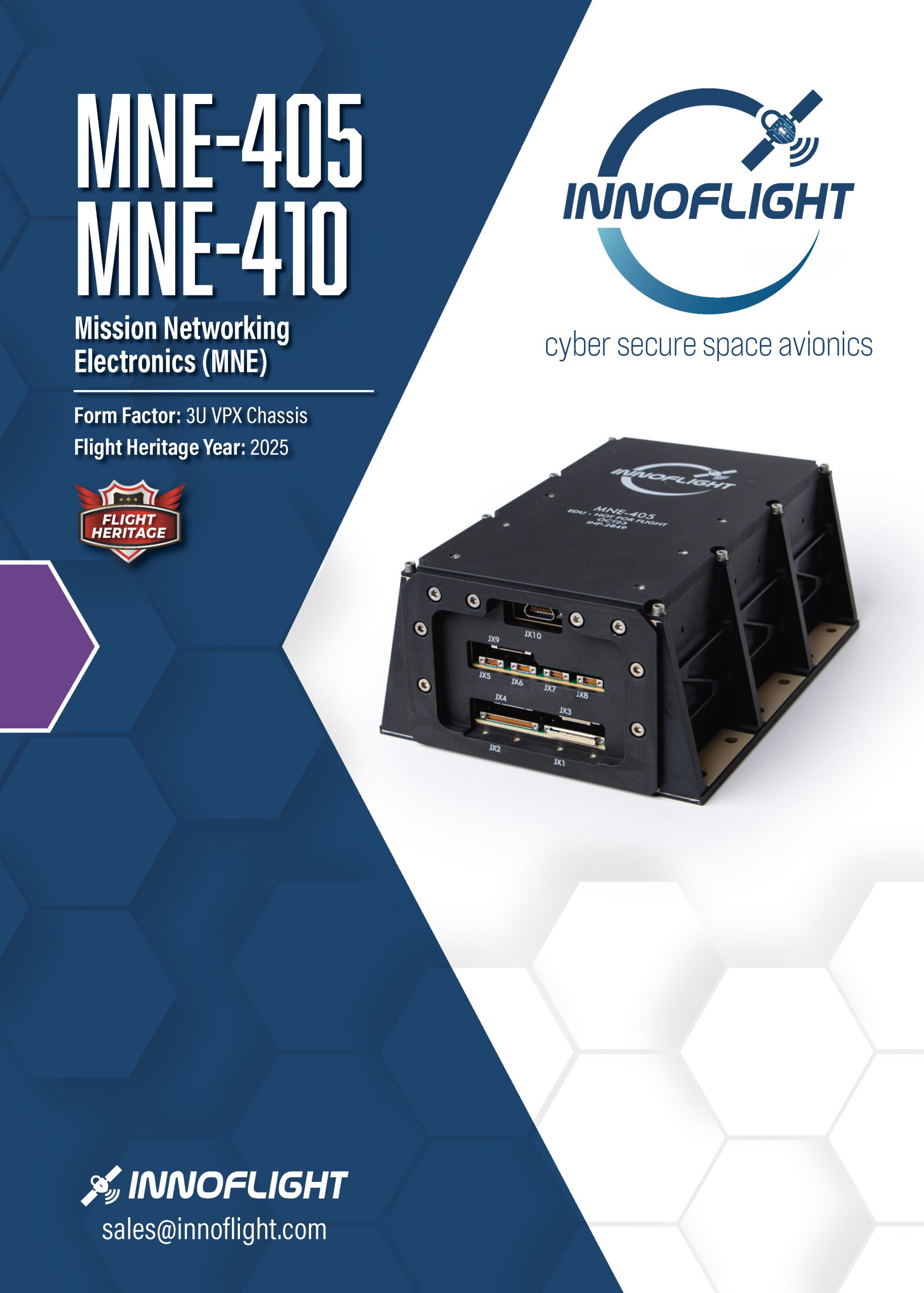

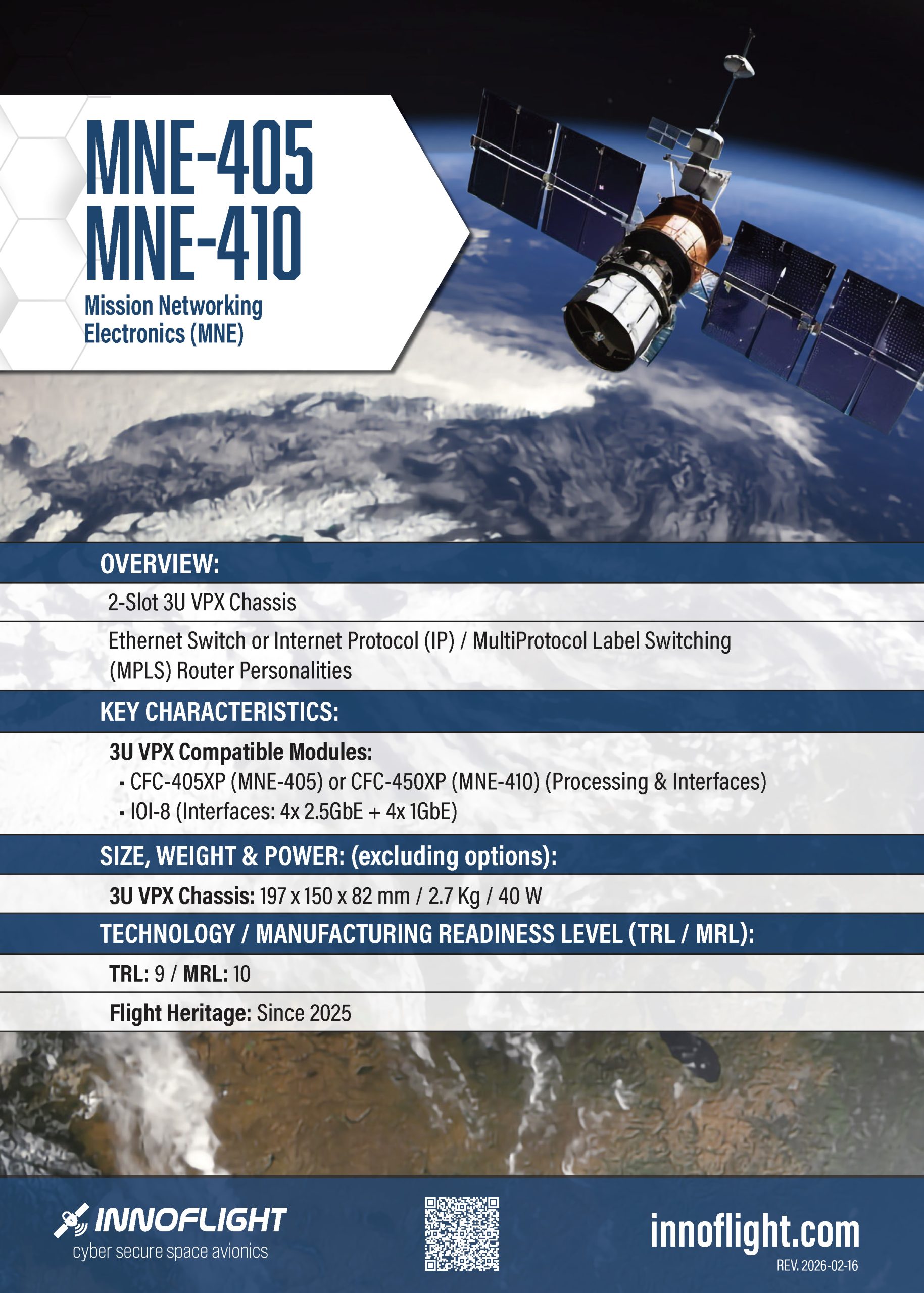

MNE-400/MNE-405/MNE-410

Overview:

Mission Networking Electronics (MNE)

  • 3U-VPX Chassis
  • Internet Protocol (IP) Router (RTR), Ethernet Switch (SWC) or MPLS Router (SNP: Secure Network Processor: SNP) Personalities

Key Characteristics:



2-Slot 3U-VPX Chassis:

  • 1x CFC-400XP (MNE-400) or 1x CFC-405XP (MNE-405) or 1x CFC-450XP (MNE-410) Module (4x 1000Base-T)
  • 1x IOI-8 Module (4x 10GBase-T + 4x 1000Base-T)

Size, Weight & Power:



Form Factor: 3U-VPX Chassis

Size:

  • 197 x 150 x 82 mm

Mass:

  • 2.7 kg

Power:

  • 40 W

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 5

Flight Heritage: Expected in 2024

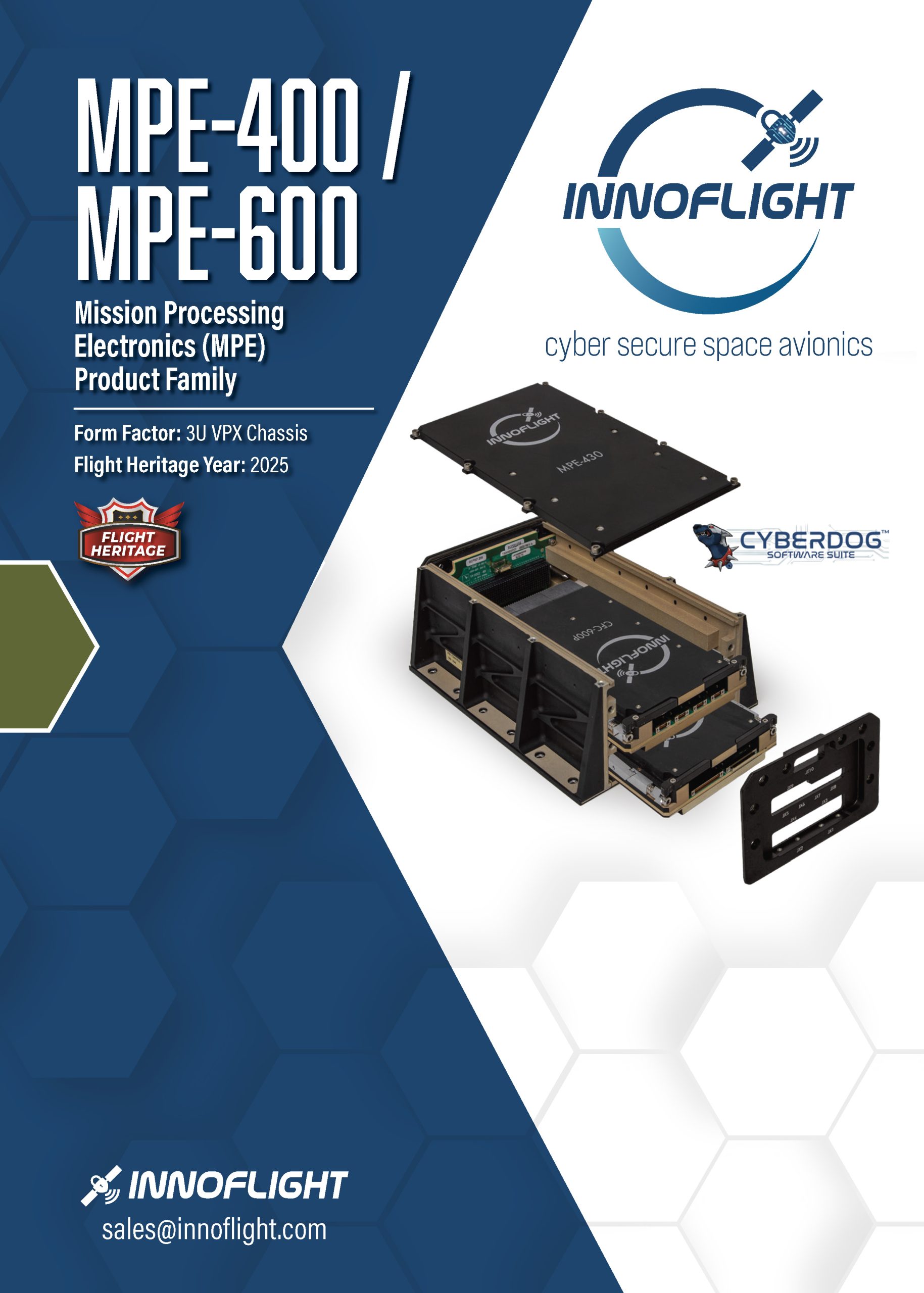

MPE-400 / MPE-600

Overview:

Mission Processing Electronics (MPE)

  • 3U-VPX Chassis
  • Ideal for Command and Data Handling (C&DH), Payload Interface & Data Processing, and Battle Management Command, Control and Communications (BMC3) Applications

Key Characteristics:



2-Slot (MPE-400) or 4-Slot (MPE-600) 3U-VPX Chassis

3U-VPX Compatible Modules:

  • CFC-400XP (Controller or Processing)
  • CFC-510P (Processing)
  • SSD-2000 (Storage)
  • IOI-8 (Interfaces)

Size, Weight & Power:



Form Factor: 3U-VPX Chassis

Size:

  •  197 x 151 x 83 mm (MPE-400)
  • 201 x 176 x 111 mm (MPE-600)

Mass:

  • 2.7 Kg (MPE-400)
  • 4.7 kg (MPE-600)

Power:

  • 60 W Max (MPE-400)
  • 100 W Max (MPE-600)

Technology Readiness Level (TRL) & Flight Heritage:



TRL: 5

Flight Heritage: Expected in 2024
